Composite Pneumatic Fittings

Features

  • One-Touch push-to-connect conflguration allows an instant tubing connection
  • Smooth-edge release sleeve design facilitates a quick tubing disconnection
  • Natural Brass and Nickel plated color are all available. Nickel plated ensures anti-contamination properties for an extended product life.
  • Pre-applied sealant on all external threads eliminates the additional sealing requirement.
  • Internal and/or external flat-to-flat hexagonal configurations for both metric and inch specifications allow a proper tightening or directional orientation upon installation by using L key or allen wrench for the applicable model types.

Product details

Additional information

Applicable Fluid Type

Air, Water(No Drinking Water), Vacuum

Working Pressure Range

-14~150PSI; -0.99~9.9Kgf/m²(-99~990Kpa)

Vacuum Rating

-29.5 in Hg(-14PSI); -750mmHg(-750Torr)

Working Temperature Range

Air: 23~140 °F; -5~60℃, Water: 32~104°F; 0~40℃

Recmmanded Tubings

PA11, PA12, PA6, PE, PU, FEP, PFA

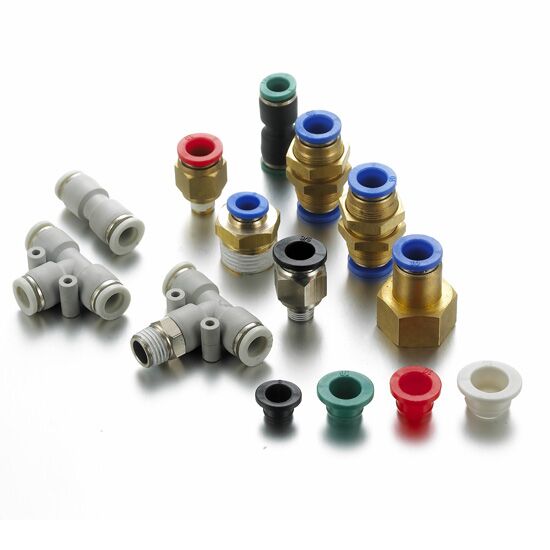

These pneumatic push-in fittings also called plastic fittings or composite pneumatic fittings according to its materials. This series is widely used to link tubes and other components in a pneumatic system.

Ideal-bell offers a variety of shapes composite push in fittings with male and female connections, tube OD metric size ranging from 4mm-16mm, inch size 1/8 to 1/2. Can provide different thread types to meet types of installation requirement, R(BSPT), NPT, G(BSPP), Universal type, thread size ranging from 10/32UNF, M5, M6, 1/8 to 1/2.  All male threads are applied thread sealant on R and NPT thread, and for 10/32 UNF, BSPP, Universal thread mount on o-ring for leakproof.

  • Body materials include brass and PBT
  • Brass can be natural brass and nickel-plated for corrosion resistance
  • Quick connection and disconnection
  • High precision brass parts
  • Cost-effective series
  • Various shapes and sizes for choice
  • 100% leakage test

This series includes:

Tube to thread connectors:

  • Straight or round straight connector PC, PCF, POC
  • Elbow push to connect fittings PL, PLF
  • Branch Tee pust fit fittings PT, PTF
  • Run Tee air fittings PST
  • Bulkhead Female fittings PMF

Tube to tube fittings:

  • Union Straight plastic fittings PUC
  • Union Elbow Fittings PUL
  • Union Tee Fittings PUT
  • Equal Bulkhead fittings PMM
  • Reduce Straight/Elbow/Tee/Y type quick fittings PG, PGT PW

Others connectors:

  • Plug-in Reducer PGJ, PLJ, PYJ
  • Plug PP
