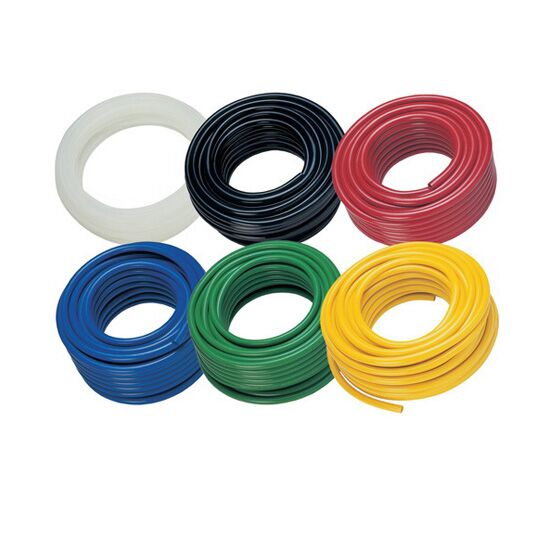

Polyurethane(PU) Tubing

Features

  • Working temperature: -40°C to + 70°C
  • Working pressure: -0.99 to +10 bar
  • Applicable Fluid type: Air, Water
  • Flexible, lightweight, wear-resisting, low degree bending radius
  • Better for pneumatic control
  • Economical cost with different types
  • Compatible with our push in fittings, barbed fittings
  • For use in food & beverage lines, motion control, robotics, laboratory etc

Product details

Additional information

Polyurethane tubing has a wide variety of applications in industrial markets, such as industrial robots and pneumatic piping. Our PU tubing has good flexibility, kink and abrasion resistant,  extruded from all fresh raw material with high precision machine,  diameter tolerance controlled within +/- 0.1mm. Compatible with our push-to-connect fittings, compression fittings and barbed fittings.

  • Flexible, lightweight, wear-resisting, low degree bending radius
  • Better for pneumatic control
  • Cost-efficient
  • Clear, red, green, blue, black, white, orange, yellow etc. colors for option
  • Can print your logo on the tubing
  • Compatible with our push in fittings, barbed fittings
  • For use in food & beverage lines, motion control, robotics, laboratory etc.



Our Polyurethane Tubing has four types for different usage.

  • Ester Base Polyurethane Tubing
  • Ether Base Polyurethane Tubing
  • Food grade Ether Base Polyurethane Tubing
  • Soft Ester Base Polyurethane Tubing

Metric size

Item Code O.D. I.D. Packing Available Colors
PU-0320 3mm 2mm 200m/roll Blue
PU-0425 4mm 2.5mm 200m/roll Black
PU-0640 6mm 2mm 200m/roll Clear
PU-0850 8mm 5mm 100m/roll Clear Blue
PU-0855 8mm 5.5mm 100m/roll Red
PU-0860 8mm 6mm 100m/roll Orange
PU-1065 10mm 6.5mm 100m/roll Yellow
PU-1080 10mm 8mm 100m/roll Green
PU-1280 12mm 8mm 100m/roll
PU-1410 14mm 10mm 100m/roll
PU-1612 16mm 12mm 100m/roll
PU-1613 16mm 13mm 100m/roll

Inch size

Item Code O.D. I.D. Packing Available Colors
PU1/8″ 3.17mm 2mm 200m/roll Blue
PU5/32″ 3.97mm 2.5mm 200m/roll Black
PU3/16″ 4.76mm 3.2mm 200m/roll Clear
PU1/4″ 6.35mm 4.23mm 200m/roll Clear Blue
PU5/16″ 7.94mm 5mm 100m/roll Red
PU3/8″ 9.52mm 6.35mm 100m/roll Orange
PU1/2″ 12.7mm 8.46mm 100m/roll Yellow
PU5/8″ 15.9mm 12mm 100m/roll Green

For other technical data and special requirements, please contact us!
