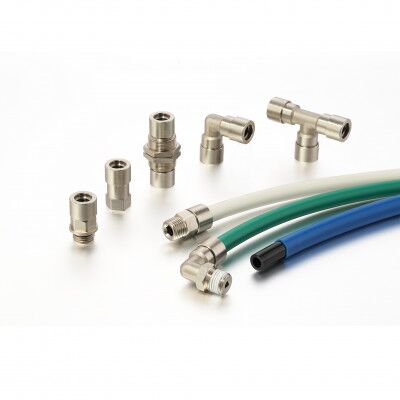

Brass Push In Fittings Resistant to Welding Spatter

Features

This spatter-proof fitting is workable for welding assembly line,  the brass material design can be flame resistant, the button design can prevent the breakdown which caused by the ingress of the spatters.

The push-in design makes easy to assemble and remove.

The operating media can be compressed air, vacuum, gases, liquid



Product details

Additional information

Applicable Fluid Type

Compressed Air, Vacuum, Gases, Liquid

Working Pressure Range

Max. to 320PSI

Working Temperature Range

5~428°F; -15~220℃

Vacuum Rating

to 28" Hg

Recmmanded Tubings

Weld Spatter Resistant Tubings

The brass spatter-proof push in fitting is workable for welding assembly line,  the brass material is flame resistant, can be for   use in all areas where there is a risk of fire, the special button design can prevent the breakdown which caused by the ingress of the spatters.

Brass spatter-resistant push to connect fittings features

  • Highly spatter-proof & flame-proof
  • Brass body with brass release ring
  • SUS collet
  • NBR or Viton Seals
  • Add dust free protector to make sure cleanness of tubing during operation
  • The connection between the tube and the fittings ensure a total tightness even in severe conditions such as impact and vibration.
  • Easy to assemble and remove

Ideal bell offers spatter-proof fittings ODs ranging from 4-12mm for metric size, 5/32-1/2 for inch size; Thread type R, G, NPT, Universal threads with range from 10/32 UNF, 1/8 to 1/2.
