Pneumatic Fittings Manufacturer
Table Of Contents For This Page
It is not easy to introduce all complete information of pneumatic accessories, here we have classified the information that you may interested on this page. Please click the below content, and find the information which you are most interested. You also could detailed reading all the information from top to bottom on this page, which might take you about 10-20 minutes.
General Hot Sale Products
Zhejiang Ideal-Bell is the leading manufacturer of pneumatic accessories in China. We produce all types pneumatic fittings, with FDA & CE certification as well ISO9001 Systems Certificate for our quality control system which ensures high standards on every product we supply!
316L Stainless Steel Push In Fittings
- Full 316L stainless steel material
- Can withstand high temperatures to 428°F & high pressure to 225 PSI
- Excellent performance withstand corrosive environments
- Various shapes and sizes
Stainless Steel Push-in Pneumatic Fittings are easy connection and use, fast installation. It’s suitable for pneumatics, chemical, semi-conductor, medical and pharmaceutical industry, diary and milking machines, coffee machine, vending, Food&Beverage environment, Vacuum, Potable water dispensing systems, ice cream dispensing equipment and more applications.
All Brass Push To Connect Fittings
- High performance nickel-plated brass and imported SUS collet adds lifetime
- Double O-ring structure design make sure the 100% sealing
- Universal thread type is available
- Excellent resistance to high pressure and vacuum
- High precision machine can make perpendicularity of Elbow and Tee connectors to 0.01
- Easy to install and remove
The all brass push-in fitting is high performing, extremely compact push-in full metal fitting, which designed as a wide range of applications. Such as automatic welding line, robotics, conveyer systems etc. It is particularly suited to media- compressed air, vacuum or some liquids compatible with the materials.
Plastic&Composite Pneumatic Push In Fittings
- One-Touch push-to-connect conflguration allows an instant tubing connection
- Smooth-edge release sleeve design facilitates a quick tubing disconnection
- Natural Brass and Nickel plated color are all available. Nickel plated ensures anti-contamination properties for an extended product life.
- Pre-applied sealant on all external threads eliminates the additional sealing requirement.
Looking for a light and cost-effective that still has best function? Look no further than our plastic pneumatic fittings. Made of high quality PBT and brass material, these fittings are perfect for connecting tubings & components in your pneumatic system.
Wanna dig deeper in custom pneumatic fittings?
All You Need to Know About Pneumatic Fittings
What is Pneumatic Fittings?
Pneumatic Fitting is an item plays a vital role in a pneumatic system, which is designed to links between air tubes, hoses and other parts. It is tubing connected button design and has thread for ease of installment. As an indispensable auxiliary part in automatic equipment, there are many types of tube connectors to match different demands.
Pneumatic Fittings can be divided into push in fitting, quick coupler, compress fitting, quick twist connector, etc.
The push in fittings can be made from composite plastic&brass, all brass and 316L stainless steel materials for different industry environment purposes.
What’s the material of pneumatic fittings?
PBT + Brass composite material is the most common for plastic push in fittings, it’s light and cost effective.
All brass material can bear higher temperature and pressure than composite plastic material, and has some corrosion proof function
316L Stainless Steel material can bear high temperature to 428 °F, and pressure to 290PSI, and have excellent performance withstand corrosive environments
What are pneumatic fittings used for?
Pneumatic fittings is widely used in many industry. It is popular with the excellet performance, cost-effective and safety, widely used in assembly production line for many range of industry.
It’s the key part in pneumatic system which connect tubings and other pneumatic components. Also can control the airflow and direction when combine with the flow controller and direction valve.
The different materials, shapes and sizes can suitable different working environment. Stragith, elbow shape is common, the branch, cross, valves and others can fit the more complicated situation. Normal application including: diary and milking machines, coffee machine, vending, Food&Beverage environment, Medical, Vacuum, Potable water dispensing systems, ice cream dispensing equipment etc.
Application
The Basic Knowledge About Pneumatic Fittings
We have a number of posts about pneumatic fittings, and we will keep updating these posts in order to give you a better understanding of pneumatic fittings. If you have any questions, feel free to leave us a comment or contact us directly, we are always ready to answer you!

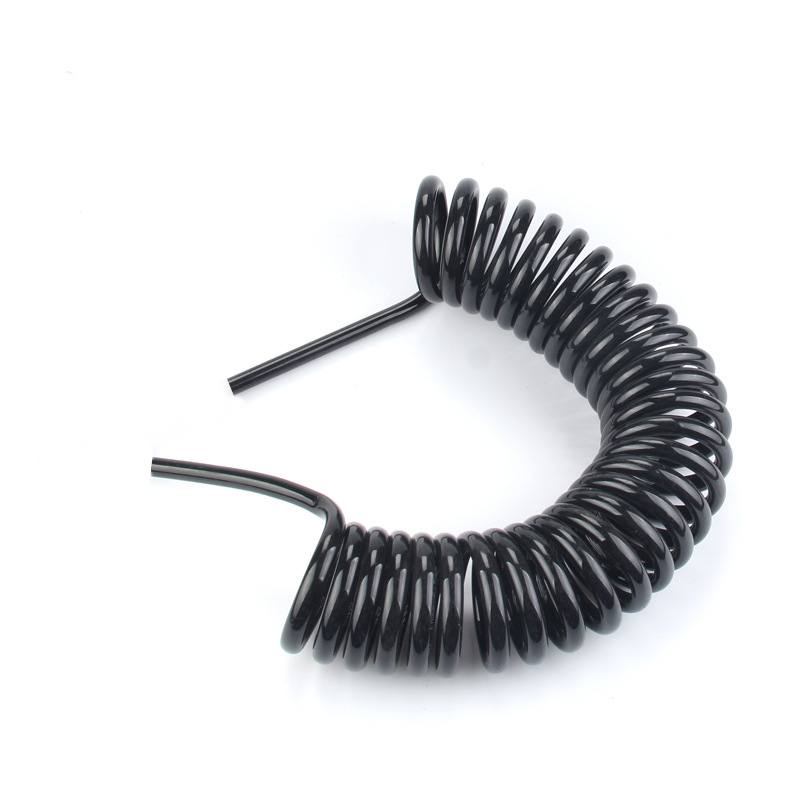

What is Pneumatic Tubing Used For?
Pneumatic tubing is a critical component in pneumatic systems, primarily used for the efficient transport of compressed air. These tubes connect various pneumatic devices, such as cylinders, actuators, and valves, facilitating the movement and control of machinery in diverse industries, including manufacturing, automotive, and food processing. Made from materials like polyurethane, polyethylene, and nylon, pneumatic tubing is designed to withstand high pressure and resist wear, ensuring reliable performance in demanding environments. The selection of appropriate tubing involves considering factors such as diameter, length, bend radius, and the operating conditions of temperature and pressure. By optimizing these parameters, pneumatic tubing enhances system efficiency, reduces energy consumption, and prolongs the lifespan of pneumatic equipment, making it an essential element in modern automation and industrial processes.
Can You Screw NPT into BSP?
When dealing with pneumatic systems, understanding the compatibility between NPT (National Pipe Tapered) and BSP (British Standard Pipe) threads is crucial for ensuring leak-free connections and optimal performance. NPT threads, characterized by their tapered design, are commonly used in North America, while BSP threads, which can be either tapered (BSPT) or parallel (BSPP), are prevalent in the UK and other regions. Mixing these two thread types can lead to significant issues, including leakage, pressure loss, and safety hazards. To effectively connect NPT and BSP fittings, it is essential to use conversion fittings and appropriate sealing methods, ensuring that all components are rated for the same pressure and temperature. By adhering to these best practices, you can maintain the integrity and reliability of your pneumatic systems.
316L Stainless Steel Pneumatic Fittings for Pulp and Paper
1. Introduction In the ever-evolving landscape of the pulp and paper industry, where operational efficiency and product quality reign supreme, the selection of mission-critical components has become a strategic imperative. As processing equipment and systems
Push to Connect Air Fittings-A Comprehensive Guide
Push to connect air fittings are revolutionizing pneumatic systems across various industries by offering rapid, reliable, and tool-free connections. These innovative fittings utilize a simple push mechanism that allows for quick installation and reconfiguration, significantly reducing downtime and labor costs. Ideal for applications in manufacturing, automotive, and robotics, push to connect fittings enhance operational efficiency by providing secure, leak-free connections that can withstand high pressures and temperatures. With materials ranging from brass to stainless steel, these fittings are designed to meet diverse environmental challenges, ensuring durability and performance. This comprehensive guide explores their applications, technical mechanisms, material selection, and advantages, equipping industrial buyers with the knowledge to make informed decisions for their pneumatic systems.
What Are Push-to-Connect Pneumatic Fittings?
Push-to-connect fittings are engineered to simplify the connection process in pneumatic systems, significantly reducing assembly time and enhancing operational efficiency. Their user-friendly design allows for rapid changes and adjustments, making them ideal for dynamic environments where flexibility is paramount. As industries increasingly adopt automation and advanced pneumatic tools, a comprehensive understanding of push-to-connect fittings becomes essential for optimizing performance and ensuring safety. This knowledge not only aids in selecting the right components but also enhances maintenance practices, ultimately leading to cost savings and improved productivity.
What is the Difference Between Pneumatic Tube and Hose?
### Featured Snippet
Understanding the difference between pneumatic tubes and hoses is crucial for optimizing pneumatic systems. Pneumatic tubes are rigid components specifically designed for transporting compressed air, making them ideal for high-pressure applications due to their ability to maintain structural integrity under stress. In contrast, hoses are flexible conduits that can carry a variety of fluids, including air, water, and chemicals, allowing for adaptability in various configurations. The choice between the two depends on factors such as the type of fluid, pressure requirements, and the need for flexibility in the application. By carefully evaluating these elements, users can select the appropriate component to enhance system efficiency and reliability.
Considerations When Bulk Purchase Pneumatic Fittings
Nowadays, although the labor cost is rising, the international situation is complicated, Ideal-bell will always do our best to meet the needs of our customers.
Pneumatic fittings are essential components in many types of machinery and equipment. Here are some common risks and issues you might encounter while purchasing.
- Language and communication barriers
- Unqualified fittings suppliers
- Fake product certificate
- Bad quality and reliability
- Fittings can't be compatible with your existing equipment
- Can't be customized
- No technical support
- Can't get a good price and cost
- Long lead time and shipping time
- Shipment stuck in customs
With more than 15 years’ production and export experience in the pneumatic field, we are always providing stable and competitive price, consistent quality, on time delivery, 24/7 timely response and professional service. And we will make efforts to minimize your purchasing and shipping costs and provide options for your choice if need.
Meanwhile,we are familiar with all kinds of thread type standard, and we are professional manufacturers with CE/ISO9001 approved.
And we have stable forwarder agents which can provide different price and shipping options based on your requirements, and solve problems which may happen in customs.
Estimated Cost Analysis For Pneumatic Fittings
When it comes to choosing the right pneuamtic fittings for your needs, you have a lot of options. The final cost depends on detail specifications and material you request for pneumatic fittings, and OEM packing, order QTY, shipment cost and so on. And the price would be totally different based on different specification……. The general cost list as below:
-
Products costThe metal part of our fittings are made with lathe machining, precision machining by CNC maching center. It is packed with 10pcs/bag, 50pcs/box, 400pcs/carton.
-
Shipping costOur fittings are very small, but many sizes and shapes, usually need many different types of fittings for one mahine, if order more, we recommend to choose sea freight as much as possible if your projects is not very tight. The sea freight cost is charged in tons, very cheaper than express. We have got stable agents, will offer more options based on your requirements.
-
Other possible Costs(OEM mould fee, Customs duties, etc.)Usually we won't charge for mould fees for bulk quantities, only when there are many different and complicated sizes or customized fittings. Estimated customs clearance, Customs duties and other miscellaneous fees based on our experience
The Process Flow & Duration Estimation
Ideal-bell is a professional manufacturer and exporter of pneuamtic fittings in China. We have been in this field since 2007, our factories area is over 10000 square meters, with high precision CNC lathe machining and auto assembly line.
Step 1: Inquiry & Quote (3~7days)
After receiving your inquiry, we will give a timely reply and make sure to provide you with an accurate quotation within 24 hours. Prices are generally valid for 1~3 months based on the situation then. We will adjust the price according to the specific needs of the customer until we could reach an agreement.
Step 2: Samples(3~7days)
Once all products details are confirmed, samples can be arranged. We will make samples according to customer needs. Samples can more intuitively allow customers to check the quality and details of products. It is very important to confirm the pre-production samples before confirming the order.
Step 3: Pay the Deposit(1~3days)
After confirming the product details, we will make a complete proforma invoice according to the product specifications, price and quantity. Customers can arrange payment according to the specific amount and bank account in the proforma invoice provided by our company. Under normal circumstances, our domestic bank account can confirm receipt of the payment arranged by the customer within 1 to 3 days.
Step 4: Bulk Manufacturing Pneumatic Fittings ( 25~30days)
Our bulk production time is generally 20 to 30 days for standard fittings order. Customized mould normally takes more 15 to 20 days. After the material arrives at the factory, our quality inspection department will inspect the raw material first, and then start mass production after passing the test. We can also make pre-production samples for confirmation according to customer requirements. During mass production, our quality inspection department will also conduct several random inspections for precision, sizes, etc.. The bulk production time is around 1-2 weeks. After the mass production is completed, the quality inspection department will conduct the 100% leakage inspection before the goods leaving the factory, and the shipment can be arranged after the inspection is passed.
Step 5: Shipping (7~30days)
Shipping time depends on the destination port’s location and international shipping conditions at that time. Under normal circumstances, it takes about a week for a vessel to arrive at a port in Southeast Asia after leaving the port, about 15 days to arrive in Australia, about 20 to 25 days to arrive in North America, and 30 to 35 days to arrive in South America. The specific shipping time will vary according to international shipping conditions and port congestion.
Want to know how to shorten lead time?
Our company can formulate personalized solutions according to the specific needs of customers and the particularity of products. Tell us your company’s needs, and we can provide you with suitable solutions based on our more than fifteen years of production experience and timely shipping information.
A Brief Self-Nomination Why Choose Ideal-bell
Ideal-bell is a specialized manufacturer and exporter of pneumatic fittings and other pneumatic products in China. Pneumatic fittings, especially 316L stainless steel push fittings are our advantageous products, we have several automatic production lines, which can be produced 7*24 hours.
We offer not only products, but also sales service. The satisfaction of our customers is the main task and mission of the company and in particular of the sales department.
- Instant response
- Professional team
- Fast Delivery
- Quality Control
- OEM Available
- Certified product
The FAQs About Pneumatic Fittings
Ideal-bell is always trying to supply pneumatic fittings with the highest quality and the best service to customers. Regarding pneumatic fittings, your concerns may not end here. If you have more questions, you can always contact us to answer at any time.
Ideal-bell is committed to quality across all aspects of our products. QCs make inspection with records for every step of prodcution to make sure the quality before shipment. And after receiving the goods, you can get 1 year warranty.
For regular mass goods, our delivery time is 15-25 working days at receipt of your deposit/LC.
For customization products, leading time need negotiated.
We can accept L/C, T/T, Western Union, MoneyGram, Paypal,etc.
100pcs/size of normal fittings.
Need negotiated for other custom items.
We are a professional Pneumatic Fittings Manufacturer since 2007, No- Middleman. And we are trader, specialized in the other pneumatic components if you want.
We have our professional R & D team to develop new products and offer technical support.
We make inspection for every step of production with records, insure all products pass strict leaking inspection 100% before shipment.
OEM is accepted, we can manufacture according to your requirements and offered drawing.
The Certificate & test report of Pneumatic Fittings
We are fully qualified to produce and export pneumatic fittings, and have complete certificate or test reports for ISO9001, CE, RoHS, REACH certifications etc
