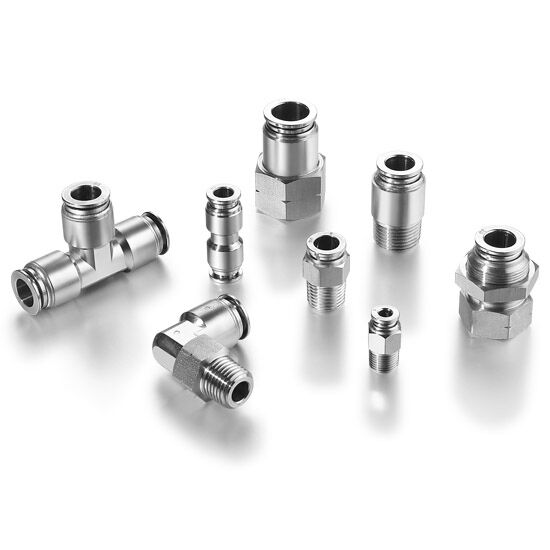

316L Stainless Steel Push-in Fittings

316L Stainless Steel(SS316) Push-in Pneumatic Fittings are structured of 316L stainless-steel body, Viton FKM seal, stainless steel lock claw, collar, and release sleeve ring.

Ideal Bell’s Stainless Steel Push-in Pneumatic Fittings are easy connection and use, fast installation. It’s suitable for pneumatics, chemical, food industry, semi-conductor, medical and pharmaceutical industry and more applications.
Idealer’s stainless steel pneumatic fittings include stainless steel push in fittings(push to connect fittings),
stainless steel push on fitting, stainless steel threaded fittings with R(BSPT or PT), G(BSPP), NPT, Metric thread size;
ranging from M5, M6, 1/8, 10-32 UNF to 1/2 and metric and inch tubing size, ranging from 4mm to 12mm, 5/32 OD to 1/2 OD.

Stainless Steel Pneumatic Fittings Features
Ideal Bell supplies Stainless Steel Pneumatic Fittings that are durable and corrosion resistant. Suitable for various application. OEM ODM Acceptable.

* widely used in the food and chemical etc. industries
* Quick connection and disconnection
* Full 316L stainless steel material withstand corrosive environments
* FKM(Viton) o-ring sealing in all push in fittings
* Applications: diary and milking machines, coffee machine, vending, Food&Beverage environment, Medical, Vacuum, Potable water dispensing systems, ice cream dispensing equipment etc.

Stainless Steel Fittings Type:

• Male/Female Straight-One side connects tube, another side installs in the threaded end. The tube and thread with same line
• Male/Female Elbow-One side connects tube, another side installs in the threaded end. The tube and thread with 90 degree
• Branch/Run Tee-One side installs in the threaded end, but two different paths for tubes.
• Bulkhead Femalee-Use to go through the panel without changing the air direction, can install one side in the male thread end, another side by tube
• Union Straight-Connect two same diameter tubes with one direction
• Union Elbow-Connect two same diameter tubes with 90 degree direction
• Union Tee-Can divide one ingoing line to two outgoing lines
• Equal Bulkhead-Connect two same diameter with one direction tube thru panel without changing the air direction
• Reduce Straight-Connect two different diameters with one direction tube
