Brass/Plastic Barbed Tube Connector

Features

These brass/plastic fittings make tubing connection easier, particularly when assembling control cabinets or mounting racks.

Connect:
Push the hose on until as close to the end as possible, then rotate the tubing until attach to the stop.

Disconnect:
Cut off the hose by knife, be careful not to damage the fittings edge, then remove it

Product details

Additional information

The barbed fittings are designed to connect tubings with clamps. The body is very small, can install in control cabinets etc. The max. working temperature of brass/plastic barbed tube connectors can be +60 °C.

Ideal-Bell provides types of barbed fittings for choice:

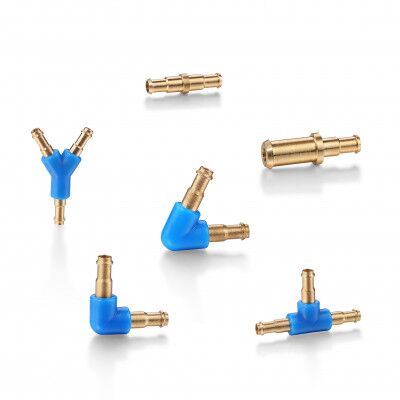

  • Shape: Straight, L-shape(45 degree and 90 degree), T-shape, Y-shape.
  • Material: Brass or Brass with plastic
  • Temperature: -10°C to 60°C
  • Tubing size: 2mm, 3mm, 4mm, 6mm
  • Recommended Tubings: PA11, PA12, PA6, PE, PU ETC.
