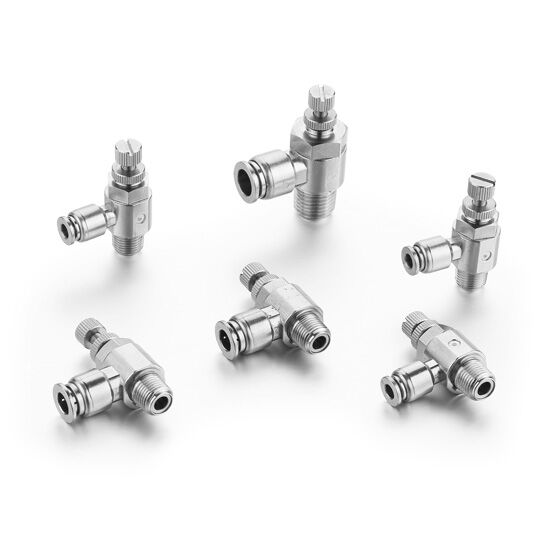

316 Stainless Steel Air Flow Speed Control Valve

Features

  • High temperature resistant, Max. 220°C
  • High pressure, Max. 290psi
  • Excellent performance withstand corrosive environments
  • High precise control for air flow
  • The flow rate nearly the same on the different pressures at 1/2 turns
  • Small valve design can save the mounting space
  • All sizes have meter-in and exhaust types

Product details

Additional information

Applicable Fluid Type

Air

Working Pressure Range

-14~225 PSI; -0.99~15 Bar

Working Temperature Range

5~428°F; -15~220℃

Recmmanded Tubings

PA11, PA12, PA6, PE, PU, FEP, PFA

The 316L stainless steel speed control valve is designed to used for where plastic and brass throttle valve can’t use. It can also be used in chemically corrosive environment and food and packaging industrial.

Once open the speed controller, the air will flow, as adjust the needle more turns, the flow will be bigger.  However, the high precise control for air flow will never increase suddenly. When adjust the needle to 1/2 turns, the flow nearly the same on the different pressures, it is very stable for our valve.

This series has same connect method as one touch fittings, it also called push in flow control valve, elbow type has tube and thread side, tube OD from 4mm to 12mm for metric size, 5/32 to 1/2 for inch size; thread size ranging from M5, M6, 1/8 to 1/2 with R(PT), G(BSPP), NPT thread type. Union type has two tubes end, tube OD is same as elbow one.

  • High temperature resistant, Max. 220°C
  • Can bear high pressure, Max. 290psi
  • Excellent performance withstand corrosive environments
  • Food grade full 316L stainless steel material
  • Can fully close the air fow
  • Easy to control the flow, adjust the needle slowly, the air will release gradually
  • High precise control for the actuators
  • The flow rate nearly the same on the different pressures at 1/2 turns
  • High flow capacity when fully open
  • Easy to install and disassembly



Be attention:

When control the air actuator, adjust the needle from a closed status,  slowly adjust until the actuator move to the required speed, don’t adjust the needle too fast and suddenly.
