In the realm of pneumatic fittings and tubing, Nylon 12 has established itself as a staple material due to its impressive combination of strength, flexibility, and chemical resistance. However, as industries evolve and the demand for more sustainable and cost-effective solutions increases, many professionals are asking: what are the alternatives to Nylon 12? This article provides a comprehensive exploration of various options available, their properties, and how to choose the right material for your specific applications.
What is Nylon 12?
Nylon 12, also known as polyamide 12, is a semi-crystalline thermoplastic that is widely used in various industrial applications, particularly in the pneumatic sector. Its chemical structure consists of long chains of repeating amide groups, which contribute to its unique properties. Nylon 12 is characterized by:
- Low Moisture Absorption: Unlike some other nylons, Nylon 12 has a low tendency to absorb moisture, which helps maintain its dimensional stability in humid environments. This property is crucial for applications where precision is key.
- High Chemical Resistance: Nylon 12 exhibits excellent resistance to a wide range of chemicals, including oils, fuels, and solvents. This makes it suitable for use in environments where exposure to harsh substances is common.
- Good Mechanical Properties: With a melting point of around 178°C and a tensile strength that allows it to withstand significant pressure, Nylon 12 is known for its durability and reliability in demanding applications.
- Flexibility: Nylon 12 maintains its flexibility even at lower temperatures, making it ideal for applications that require bending and movement.
Despite these advantages, there are several reasons to consider alternatives to Nylon 12.
Why Consider Alternatives to Nylon 12?
- Cost Factors: Nylon 12 can be more expensive than other materials, which can impact overall project budgets, especially for large-scale applications. As companies strive to reduce costs, exploring more affordable alternatives becomes essential.
- Performance Limitations: While Nylon 12 performs well in many scenarios, it may not be the best choice for extreme temperatures or specific chemical environments. For instance, in applications involving high heat or aggressive chemicals, Nylon 12 may degrade faster than desired.
- Environmental Impact: As sustainability becomes a priority for many companies, the environmental footprint of materials is under scrutiny. Alternatives may offer better recyclability or lower environmental impact, aligning with corporate sustainability goals.
- Availability Issues: Supply chain disruptions can affect the availability of Nylon 12, prompting the need for alternative materials that are more readily accessible.
What Are the Key Alternatives to Nylon 12?
1. Nylon 6
Nylon 6 is a widely used alternative that offers similar properties to Nylon 12 but at a lower cost. It is produced through a different polymerization process, resulting in a material that has:
- Higher Moisture Absorption: Nylon 6 tends to absorb more moisture than Nylon 12, which can affect its dimensional stability in humid environments. This characteristic is crucial to consider when selecting materials for applications exposed to moisture.
- Good Mechanical Properties: Nylon 6 has a tensile strength comparable to Nylon 12, making it suitable for many pneumatic applications. However, its higher moisture absorption may limit its use in precision applications.
- Cost-Effectiveness: Due to its lower production costs, Nylon 6 can be a more budget-friendly option for companies looking to reduce expenses without sacrificing too much performance.

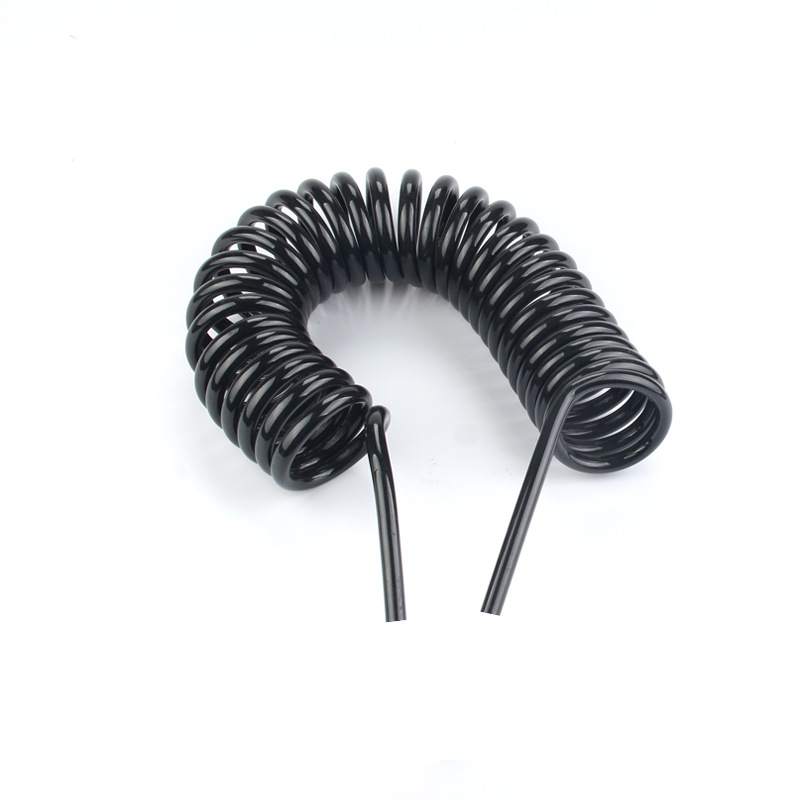

2. Polyurethane (PU)
Polyurethane is another excellent alternative, particularly for tubing. It is known for its exceptional flexibility and durability, making it ideal for applications that require bending and movement. Key properties of PU include:
- Abrasion Resistance: PU tubing can withstand significant wear and tear, making it suitable for high-abrasion environments. This property is particularly beneficial in applications where tubing is subject to friction or contact with rough surfaces.
- Chemical Resistance: PU exhibits good resistance to many chemicals, including oils and solvents, making it versatile for various applications.
- Flexibility: PU maintains its flexibility even at low temperatures, allowing for easy installation and adaptability in dynamic systems.
If you need a material that can handle dynamic applications and provide long-lasting performance, PU is worth considering.
3. Polyethylene (PE)
Polyethylene is one of the most widely used plastics and offers a cost-effective solution for many pneumatic applications. Its properties include:
- Lightweight: PE is significantly lighter than Nylon 12, which can reduce shipping costs and make handling easier during installation.
- Moisture Resistance: PE is resistant to moisture, making it suitable for applications where exposure to water is a concern.
- Chemical Resistance: While not as robust as Nylon 12 or PU, PE still offers good resistance to many chemicals, making it a viable option for less demanding applications.
- Affordability: PE is one of the most cost-effective materials available, making it an attractive choice for budget-conscious projects.
While it may not have the same strength as Nylon 12, its affordability and ease of processing make it a popular choice for applications that do not require high-performance materials.
4. PTFE (Polytetrafluoroethylene)
PTFE is renowned for its outstanding chemical resistance and high-temperature performance. It is often used in applications where exposure to harsh chemicals is a concern. Key characteristics of PTFE include:
- Exceptional Chemical Resistance: PTFE is virtually inert and can withstand exposure to a wide range of chemicals, including strong acids and bases. This makes it ideal for use in the food and pharmaceutical industries, where contamination is a critical concern.
- High-Temperature Performance: PTFE can operate at temperatures up to 260°C without degrading, making it suitable for high-heat applications.
- Low Friction: PTFE has a very low coefficient of friction, which can be advantageous in applications requiring smooth movement or reduced wear.
While PTFE is more expensive and less flexible than Nylon 12, its unique properties make it invaluable in specific scenarios. If your application involves aggressive chemicals or high temperatures, PTFE should be on your radar.
How to Choose the Right Alternative?
Selecting the right alternative to Nylon 12 involves several considerations:
- Application Requirements: Assess the specific needs of your application, including pressure ratings, temperature ranges, and chemical exposure. Each alternative has its strengths and weaknesses, so understanding your requirements is crucial.
- Cost Analysis: Evaluate the total cost of ownership for each material, including initial costs, maintenance, and potential downtime. Sometimes, a cheaper material may lead to higher long-term costs due to performance issues.
- Compatibility: Ensure that the alternative material is compatible with existing fittings and systems. This may involve testing and validation to avoid issues during implementation.
- Availability: Consider the supply chain and availability of the materials. Some alternatives may not be readily available in your region, which could impact project timelines.
Industry Insights: Real-World Applications and Troubleshooting
Over my dozen years in the pneumatic industry, I’ve seen many companies successfully transition from Nylon 12 to alternative materials. For instance, one manufacturer faced challenges with Nylon 12 in a high-abrasion environment. By switching to PU tubing, they not only improved the lifespan of their components but also reduced maintenance costs significantly.
However, transitioning materials can come with challenges. Common issues include compatibility with existing fittings and the need for adjustments in manufacturing processes. It’s essential to conduct thorough testing and validation before fully committing to a new material.
Additionally, consider the long-term implications of your material choice. For example, while a cheaper alternative may save costs upfront, it could lead to increased maintenance or replacement costs down the line.
Conclusion
In conclusion, while Nylon 12 has been a reliable choice for many applications, exploring alternatives can lead to better performance, cost savings, and sustainability. Whether you opt for Nylon 6, polyurethane, polyethylene, or PTFE, understanding the specific needs of your application will guide you in making the best choice.
If you have experiences or questions about transitioning from Nylon 12 to alternative materials, I encourage you to share your insights or reach out for further assistance. The right material can make all the difference in the success of your pneumatic systems. By carefully evaluating your options and considering the unique properties of each material, you can ensure that your projects are not only successful but also sustainable and cost-effective.
