Pneumatics is a vital technology that utilizes compressed air to perform work across various industries, including manufacturing, automotive, and healthcare. Understanding the components that make up pneumatic systems is essential for optimizing performance, ensuring reliability, and troubleshooting effectively. In this article, I will provide a comprehensive overview of the most commonly used fittings and tubing in pneumatics, along with insights into their operation, applications, and best practices. This knowledge will empower you to make informed decisions and resolve common issues without the need for further research.
What Are Pneumatic Fittings?
Pneumatic fittings are critical components that connect different parts of a pneumatic system, facilitating the flow of compressed air. They come in various types, each designed for specific applications and operational requirements. The most common types of pneumatic fittings include:
- Push-to-Connect Fittings: These fittings allow for quick and easy connections without the need for tools. The mechanism involves a collet that grips the tubing when it is pushed into the fitting, creating a secure seal. This design is particularly advantageous in applications requiring frequent changes or adjustments, such as in assembly lines or robotic systems.
- Push-On Fittings: Similar to push-to-connect fittings, push-on fittings require the tubing to be pushed onto the fitting. However, they typically do not have a locking mechanism, making them suitable for low-pressure applications where ease of assembly is prioritized.
- Barbed Fittings: Barbed fittings feature ridges that grip the tubing securely when it is pushed onto the fitting. This design provides a strong connection that can withstand vibrations and movement, making barbed fittings ideal for applications in automotive and fluid transfer systems.

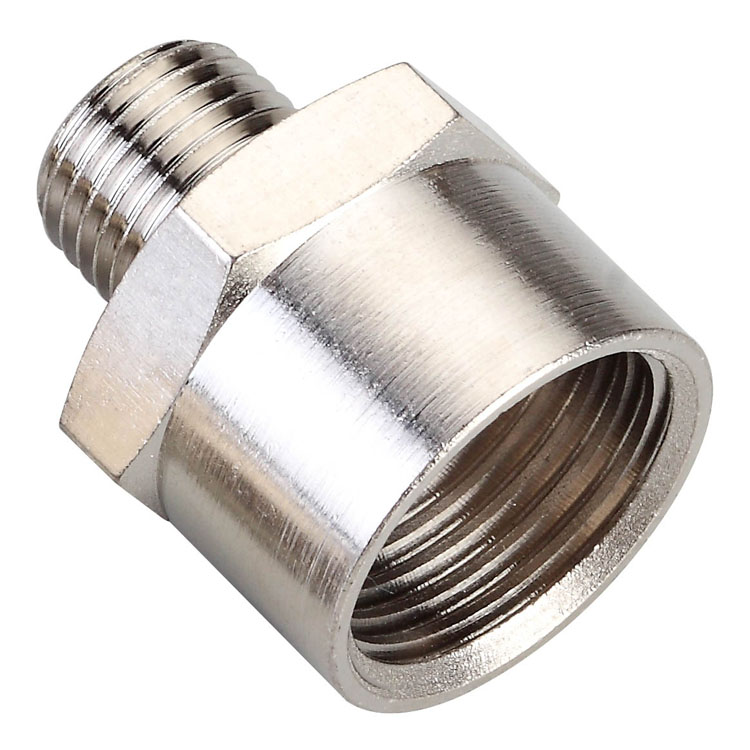

- Threaded Fittings: These fittings use male and female threads to create a secure connection. They are essential in high-pressure applications where a tight seal is necessary to prevent leaks. Proper installation is crucial; ensure that the threads are clean and aligned to achieve optimal sealing.
- Quick Coupler Fittings: Quick couplers allow for rapid connection and disconnection of pneumatic lines. They are particularly useful in environments where multiple tools or equipment are used, enabling quick tool changes without downtime.
What Types of Tubing Are Used in Pneumatic Systems?
The tubing used in pneumatic systems is just as important as the fittings. The choice of tubing affects the system’s performance, durability, and compatibility with various media. Here are the most common types of tubing used in pneumatics:
- Polyurethane (PU) Tubing: PU tubing is known for its flexibility, lightweight nature, and resistance to abrasion. It is often used in applications where movement is required, such as in robotic arms or conveyor systems. Its ability to withstand bending and twisting makes it a popular choice for dynamic applications.
- Nylon Tubing: Nylon tubing is strong, durable, and resistant to high pressures and temperatures. It is commonly used in applications that require a robust solution, such as in pneumatic actuators and valves. Nylon tubing is also resistant to chemicals, making it suitable for various industrial environments.
- Polyethylene (PE) Tubing: PE tubing is lightweight and cost-effective, making it a popular choice for low-pressure applications. It is often used in air and water lines where flexibility and ease of installation are essential.
- PTFE Tubing: PTFE (Polytetrafluoroethylene) tubing is known for its excellent chemical resistance and high-temperature tolerance. It is ideal for applications involving corrosive substances or extreme temperatures, such as in chemical processing or pharmaceutical industries.
- Coiled Tubing: Coiled tubing is designed for applications requiring a compact solution. It allows for easy storage and transport while providing flexibility in installation. Coiled tubing is often used in pneumatic tools and equipment that require mobility.
When selecting tubing, consider factors such as pressure ratings, temperature resistance, and compatibility with the media being transported. Proper selection ensures optimal performance and longevity of the pneumatic system.
How Do Push-to-Connect Fittings Work?
Push-to-connect fittings operate on a straightforward yet effective principle. When the tubing is pushed into the fitting, a series of internal components, including a collet and O-ring, grip the tubing securely. The collet’s design allows for easy insertion while providing a tight seal that prevents air leaks.
The advantages of push-to-connect fittings are numerous. They save time during installation and maintenance, reduce the risk of leaks, and can be easily reconfigured as needed. These fittings are commonly used in applications such as robotics, packaging, and material handling, where efficiency and flexibility are paramount.
To ensure optimal performance, it is essential to select the appropriate fitting size for the tubing being used. Additionally, regular inspection of the fittings for wear and tear can help prevent potential issues.
What Are the Benefits of Using Barbed Fittings?
Barbed fittings are a popular choice in pneumatic systems due to their simple yet effective design. The barbs create a mechanical grip on the tubing, ensuring a secure connection that can withstand vibrations and movement. This design is particularly beneficial in applications where flexibility and reliability are required.
One of the main benefits of barbed fittings is their versatility. They can be used with various types of tubing, including PU, nylon, and PE, making them suitable for a wide range of applications. Additionally, barbed fittings are easy to install and require no special tools, making them a practical choice for many users.
However, it is essential to ensure that the tubing is properly sized for the fitting to achieve the best results. Overly tight or loose connections can lead to leaks or disconnections, so careful selection and installation are crucial.
Why Are Threaded Fittings Important in Pneumatics?
Threaded fittings play a vital role in creating secure connections in pneumatic systems, especially in high-pressure applications. The threaded design allows for a tight seal that prevents leaks, which is critical for maintaining system efficiency and safety.
When using threaded fittings, proper installation is key. Ensure that the threads are clean and free of debris, and use appropriate sealing methods, such as Teflon tape or thread sealant, to enhance the seal. Regular inspection of threaded connections is also essential to identify any signs of wear or damage.
Common applications for threaded fittings include compressors, valves, and other high-pressure equipment. By understanding the importance of threaded fittings and following best practices for installation and maintenance, you can ensure the reliability and longevity of your pneumatic systems.
What Role Do Quick Couplers Play in Pneumatic Systems?
Quick couplers are designed for easy connection and disconnection of pneumatic lines, making them invaluable in fast-paced environments. Their design allows users to quickly switch between different tools or equipment without the need for tools, enhancing productivity and reducing downtime.
The benefits of quick couplers are clear. They streamline operations by allowing for rapid tool changes, making them particularly useful in automotive repair, manufacturing, and construction. Additionally, quick couplers can help prevent air loss during disconnection, contributing to overall system efficiency.
When selecting quick couplers, consider factors such as compatibility with existing fittings, pressure ratings, and the specific requirements of your application. Regular maintenance and inspection of quick couplers are also essential to ensure optimal performance and prevent leaks.
How to Ensure Quality Control in Pneumatic Components?
Quality control is a critical aspect of manufacturing pneumatic components. Ensuring that fittings and tubing meet industry standards is essential for maintaining system integrity and performance. Key quality control measures include rigorous testing for pressure ratings, material compatibility, and dimensional accuracy.
When selecting pneumatic components, look for manufacturers that adhere to recognized quality standards. Certifications such as ISO 9001 can provide assurance that the products meet stringent quality requirements. Investing in high-quality components can save you time and money in the long run by reducing the likelihood of failures and maintenance issues.
Additionally, consider implementing a quality assurance program within your organization to regularly inspect and test pneumatic components. This proactive approach can help identify potential issues before they escalate, ensuring the reliability and efficiency of your pneumatic systems.
What Are Common Troubleshooting Tips for Pneumatic Systems?
Even the best-designed pneumatic systems can encounter issues. Common problems include air leaks, pressure drops, and fitting failures. Here are some troubleshooting tips to help you address these issues effectively:
- Check for Leaks: Use soapy water to identify leaks around fittings and connections. Bubbles will form at the leak site, allowing you to pinpoint the problem. Address any leaks promptly to prevent air loss and maintain system efficiency.
- Inspect Fittings and Tubing: Look for signs of wear or damage on fittings and tubing. Cracks, abrasions, or discoloration can indicate that components need to be replaced. Regular inspections can help prevent unexpected failures.
- Monitor Pressure Levels: Ensure that the system is operating within the recommended pressure range. A drop in pressure can indicate a leak or blockage. Use pressure gauges to monitor levels and identify any discrepancies.
- Regular Maintenance: Schedule regular inspections and maintenance to catch potential issues before they become significant problems. This includes cleaning fittings, replacing worn components, and ensuring that all connections are secure.
By being proactive and addressing issues promptly, you can ensure the longevity and efficiency of your pneumatic systems.
Conclusion
Understanding the most commonly used components in pneumatics is essential for anyone involved in this field. By familiarizing yourself with the various fittings and tubing options, you can make informed decisions that enhance your operations. Remember to consider your specific needs and consult with experts when necessary to ensure you select the best components for your applications.
If you’re looking to optimize your pneumatic systems or have specific questions, don’t hesitate to reach out for expert advice. The right guidance can make all the difference in achieving efficient and reliable performance in your pneumatic applications. With the knowledge gained from this article, you are now equipped to tackle common challenges and make informed choices in your pneumatic systems.
