Pneumatic cylinders are vital components in various industrial applications, converting compressed air into mechanical energy to perform work. Understanding the two main types of pneumatic cylinders—single-acting and double-acting—is crucial for selecting the right cylinder for your specific needs. This knowledge not only enhances operational efficiency but also ensures that you can troubleshoot and maintain your pneumatic systems effectively. In this article, I’ll explore the characteristics, advantages, and applications of both types of pneumatic cylinders, providing you with the insights needed to make informed decisions.
What Are Pneumatic Cylinders?
Pneumatic cylinders are devices that utilize compressed air to create linear motion. They consist of a cylinder body, a piston, and a rod, which work together to convert the energy from compressed air into mechanical force. When air is introduced into the cylinder, it pushes the piston, causing the rod to extend or retract, depending on the cylinder type. Pneumatic cylinders are widely used in automation, manufacturing, and robotics, where they perform tasks such as lifting, pushing, pulling, and clamping.
How Pneumatic Cylinders Work
The operation of pneumatic cylinders is based on the principles of fluid dynamics and pressure differentials. When compressed air enters the cylinder through an inlet port, it fills the space behind the piston. This pressure pushes the piston forward, creating linear motion. The force exerted by the piston is determined by the pressure of the air and the surface area of the piston.
For example, if the piston has a diameter of 2 inches and the air pressure is 80 psi, the force exerted by the piston can be calculated using the formula:
Force=Pressure×Area
Where the area of the piston can be calculated as:
This fundamental understanding of how pneumatic cylinders operate is essential for selecting the right type for your application.
What Are the Two Main Types of Pneumatic Cylinders?

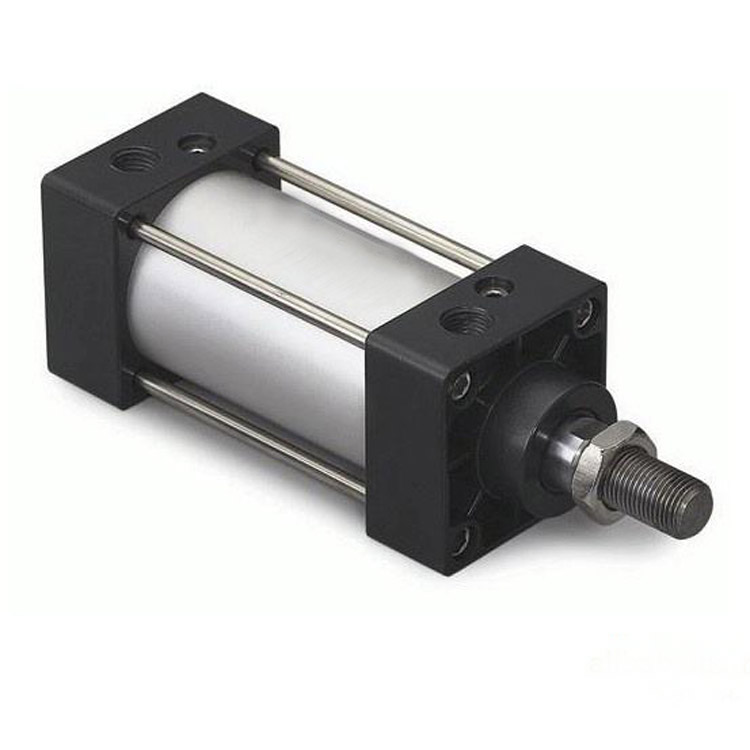

1. Single-Acting Pneumatic Cylinders
Single-acting pneumatic cylinders are designed to exert force in one direction only. They use compressed air to move the piston in one direction, while a spring or gravity returns the piston to its original position.
Advantages and Disadvantages
Advantages:
- Simplicity: Single-acting cylinders have a straightforward design, making them easier to install and maintain.
- Cost-Effective: Generally, they are less expensive than double-acting cylinders due to fewer components.
Disadvantages:
- Limited Force: They can only exert force in one direction, which may not be suitable for applications requiring continuous movement.
- Slower Return: The return stroke relies on a spring or gravity, which can be slower and less controlled than a powered return.
Common Applications
Single-acting cylinders are commonly used in applications where the return stroke is not critical, such as in clamping devices, packaging machines, and simple lifting mechanisms. For instance, in a packaging machine, a single-acting cylinder can push a product into place, while the spring mechanism returns it to the starting position.

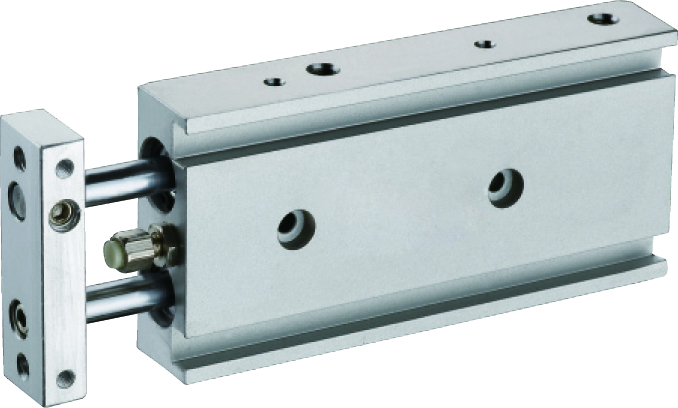

2. Double-Acting Pneumatic Cylinders
Double-acting pneumatic cylinders can exert force in both directions. They utilize compressed air to move the piston in one direction and then apply air pressure to the opposite side of the piston for the return stroke.
Advantages and Disadvantages
- Advantages:
- Versatility: Double-acting cylinders can perform work in both directions, making them suitable for a wider range of applications.
- Greater Control: They provide more precise control over the speed and force of both the extension and retraction strokes.
- Disadvantages:
- Complexity: The design is more complex, which can lead to higher installation and maintenance costs.
- Higher Cost: Generally, double-acting cylinders are more expensive than single-acting cylinders due to their additional components.
Common Applications
Double-acting cylinders are widely used in applications requiring precise control and continuous movement, such as in conveyor systems, robotic arms, and automated assembly lines. For example, in a robotic arm, a double-acting cylinder can extend to pick up an object and retract to place it in a different location, allowing for efficient operation in manufacturing processes.
How Do Single-Acting and Double-Acting Cylinders Differ?
The primary difference between single-acting and double-acting cylinders lies in their operation. Single-acting cylinders use compressed air to move the piston in one direction, relying on a spring or gravity for the return. In contrast, double-acting cylinders use air pressure to control both the extension and retraction of the piston, allowing for more versatile applications.
Efficiency and Control
In terms of efficiency, double-acting cylinders are generally more effective for applications requiring rapid and controlled movement. They can achieve faster cycle times since both strokes are powered by compressed air. Single-acting cylinders, while simpler, may result in slower operations due to the reliance on a spring for the return stroke.
Situational Analysis
When choosing between the two, consider the specific requirements of your application. If you need a simple, cost-effective solution for tasks that only require movement in one direction, a single-acting cylinder may be sufficient. However, if your application demands precise control and the ability to exert force in both directions, a double-acting cylinder is the better choice.
What Are the Key Components of Pneumatic Cylinders?
Understanding the key components of pneumatic cylinders is essential for effective troubleshooting and maintenance. The main components include:
- Cylinder Body: The outer casing that houses the piston and rod. It is typically made from durable materials like aluminum or steel to withstand high pressures.
- Piston: The internal component that moves within the cylinder, driven by compressed air. The piston is designed to create a tight seal against the cylinder walls to maximize efficiency.
- Rod: The part that extends from the cylinder and performs the work. The rod is often coated to reduce friction and wear.
- Seals and End Caps: These components prevent air leaks and ensure the efficient operation of the cylinder. High-quality seals are crucial for maintaining pressure and preventing contamination.
Each of these components plays a vital role in the functionality and performance of pneumatic cylinders. Regular inspection and maintenance of these parts can help prevent issues such as air leaks and cylinder sticking.
Troubleshooting Common Issues with Pneumatic Cylinders
Common Problems
- Air Leaks: One of the most common issues with pneumatic cylinders is air leaks, which can lead to reduced efficiency and performance. Leaks can occur at seals, fittings, or connections.
- Cylinder Sticking: This occurs when the piston does not move smoothly within the cylinder, often due to dirt or debris accumulation. Sticking can lead to inconsistent performance and increased wear.
- Inconsistent Movement: If the cylinder does not extend or retract consistently, it may indicate a problem with the air supply, internal components, or control valves.
Solutions and Maintenance Tips
To address these issues, implement a regular inspection and maintenance schedule. Here are some tips:
- Check for Air Leaks: Regularly inspect seals and connections for signs of wear or damage. Use soapy water to identify leaks by looking for bubbles.
- Clean the Cylinder: Keep the cylinder free from dirt and debris to ensure smooth operation. Use appropriate cleaning agents that do not damage seals or components.
- Monitor Air Supply: Ensure that the air supply is consistent and meets the required pressure specifications. Use pressure regulators and filters to maintain optimal conditions.
Using quality fittings and tubing is also crucial to prevent issues and maintain the integrity of your pneumatic systems. Properly sized and rated components will help ensure reliable operation and reduce the risk of failure.
Conclusion
Understanding the two main types of pneumatic cylinders—single-acting and double-acting—is essential for selecting the right cylinder for your applications. Each type has its advantages and disadvantages, and the choice depends on the specific requirements of your project. By knowing how these cylinders operate and their key components, you can troubleshoot common issues effectively and ensure optimal performance in your pneumatic systems.
