High-Quality Pneumatic Fittings &Tubings for Durable and Reliable Performance
High-Quality Pneumatic Fittings &Tubings for Durable and Reliable Performance

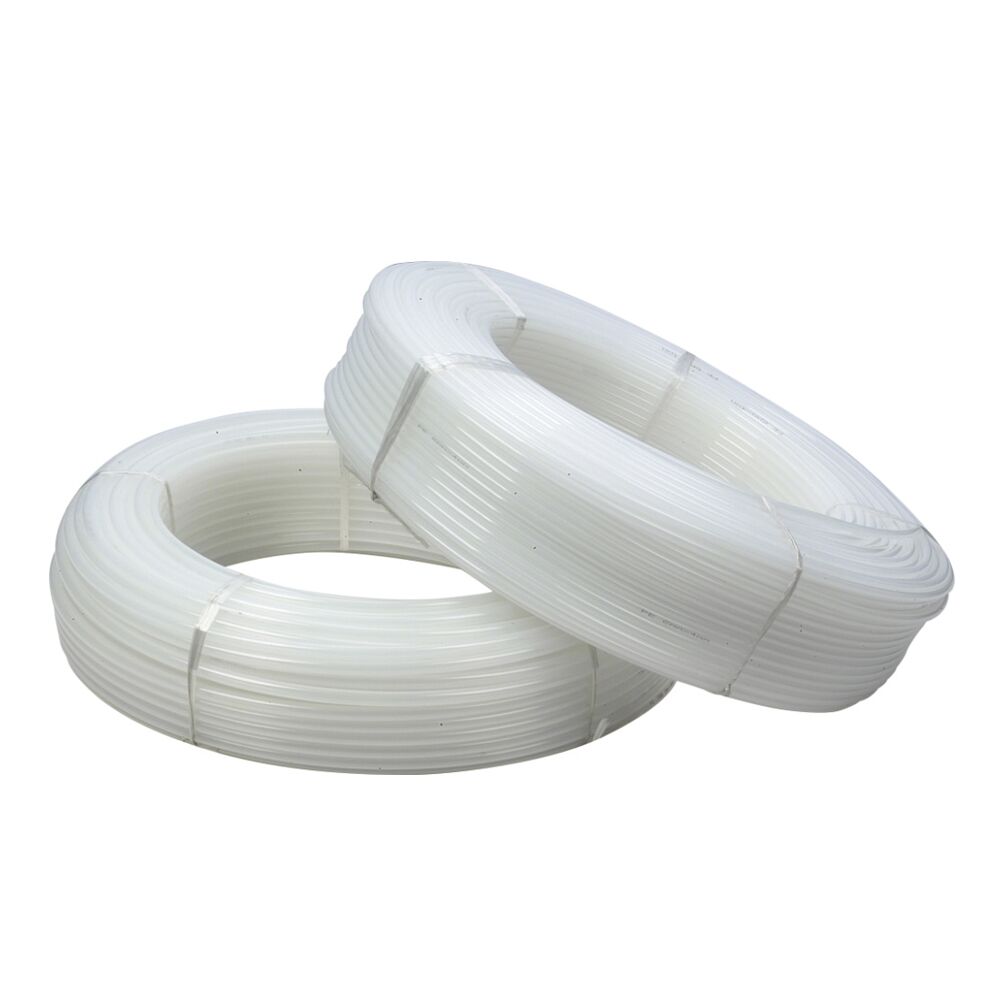

Polyethylene tubing is widely used in various fields where need low pressure tubing. The tubing has high performance withstand corrosive from chemical and solvents. Polyethylene tubing has good flexibility, excellent performance at lower pressure higher temperature and cost-efficient. Our polyethylene tubing is extruded from all fresh raw material with high precision machine, diameter tolerance controlled within +/- 0.1mm. Compatible with our push-to-connect fittings, compression fittings and barbed fittings.
Metric size
| Item Code | O.D. | I.D. | PACKING | Available Colors |
|---|---|---|---|---|
| PE-0425 | 4mm | 2.5mm | 200m/roll | Blue |
| PE-0640 | 6mm | 4mm | 200m/roll | Black |
| PE-0850 | 8mm | 5mm | 100m/roll | Red |
| PE-0860 | 8mm | 6mm | 100m/roll | White |
| PE-1065 | 10mm | 6.5mm | 100m/roll | Orange |
| PE-1280 | 12mm | 8mm | 100m/roll | Yellow |
| PE-1612 | 16mm | 12mm | 100m/roll |
Inch size
| Item Code | O.D. | I.D. | PACKING | Available Colors |
|---|---|---|---|---|
| PE1/4″ | 6.35mm | 4.23mm | 200m/roll | White |
| PE5/16″ | 7.94mm | 5mm | 100m/roll | Blue |
| PE3/8″ | 9.52mm | 6.35mm | 100m/roll | Black |
| PE1/2″ | 12.7mm | 8.46mm | 100m/roll | Red |
| PE5/8″ | 15.9mm | 12mm | 100m/roll | Yellow |
Our Brand
Small fittings, big function
