When it comes to the integrity and safety of pneumatic and hydraulic systems, understanding the pressure capacity of stainless steel fittings is paramount. These fittings are not just simple connectors; they are critical components that ensure the smooth operation of various systems across multiple industries. In this article, I will provide a comprehensive overview of stainless steel fittings, their pressure ratings, and the factors that influence their performance. By the end, you will have a clear understanding of how to select the right fittings for your applications, ensuring both efficiency and safety.
What Are Stainless Steel Fittings?
Stainless steel fittings are essential components used to connect pipes, tubes, and hoses in a variety of systems. They come in several types, including:
- Push-to-Connect Fittings: These allow for quick and easy connections without the need for tools, making them ideal for applications where frequent disconnections are necessary.
- Threaded Fittings: These fittings use threads to create a secure connection, often found in high-pressure applications.

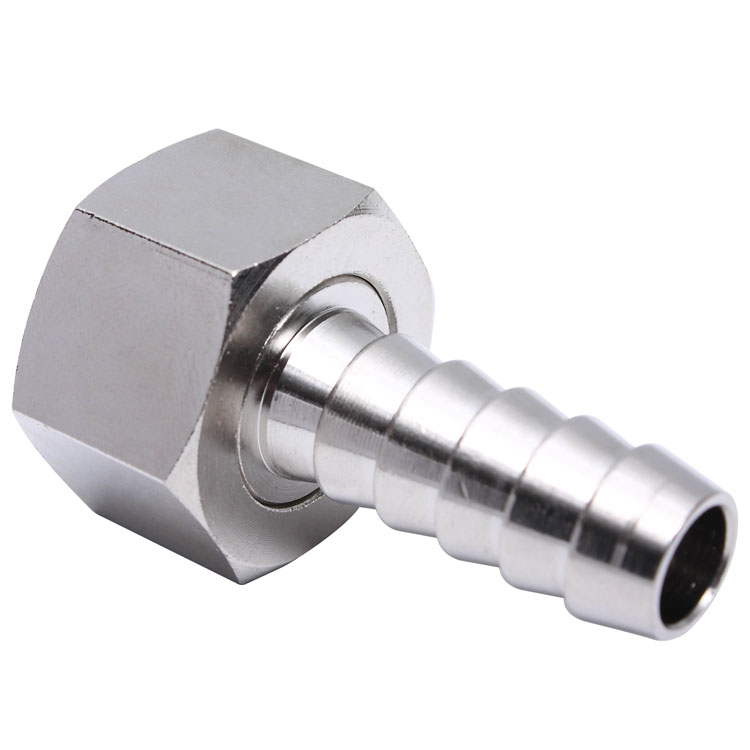

- Barbed Fittings: Designed for use with flexible tubing, barbed fittings create a tight seal as the tubing is pushed onto the barbs.
- Quick Couplers: These fittings enable rapid connection and disconnection, commonly used in pneumatic systems.
The choice of fitting type depends on the specific requirements of the application, including pressure, temperature, and the nature of the fluids being transported.
Understanding Pressure Ratings
A pressure rating is a critical specification that indicates the maximum pressure a fitting can safely handle without failure. This rating is determined through rigorous testing and is influenced by several factors, including:
- Material Properties: The type of stainless steel used (e.g., 304, 316) significantly affects the fitting’s strength and corrosion resistance.
- Design Specifications: The geometry of the fitting, including wall thickness and shape, plays a crucial role in its ability to withstand pressure.
- Manufacturing Processes: High-quality manufacturing techniques, such as forging or precision machining, ensure that the fittings meet or exceed industry standards.
Understanding pressure ratings is essential for preventing leaks, bursts, and catastrophic failures in your systems. Always refer to the manufacturer’s specifications for the exact pressure rating of the fitting you are considering.
Factors Affecting Pressure Capacity of Stainless Steel Fittings
Several key factors can influence the pressure capacity of stainless steel fittings:
- Material Composition and Grade: The grade of stainless steel is one of the most significant factors affecting pressure capacity. For example, 304 stainless steel is commonly used for general applications due to its good corrosion resistance and strength. However, in more corrosive environments, 316 stainless steel is preferred because of its enhanced resistance to pitting and crevice corrosion.
- Temperature Effects: The pressure capacity of fittings can vary with temperature. As temperatures increase, the material may lose some of its strength, leading to a lower pressure rating. For instance, while a fitting may be rated for 2000 psi at room temperature, its capacity may drop significantly at elevated temperatures. It’s crucial to consider the operating temperature of your system when selecting fittings.
- Design and Manufacturing Processes: The design of the fitting, including its shape and size, along with the manufacturing processes, can affect its overall strength. For example, fittings that are forged tend to have better mechanical properties than those that are merely machined. Additionally, the presence of any defects or inconsistencies in the material can compromise the fitting’s integrity.
- Corrosion Resistance: Stainless steel fittings are chosen for their resistance to corrosion, but this resistance can be compromised in certain environments. Factors such as exposure to chlorides, acids, or high humidity can lead to corrosion, which in turn affects the pressure capacity. Regular inspection and maintenance are essential to ensure the longevity of the fittings.
How to Determine the Pressure Capacity of Stainless Steel Fittings
To accurately determine the pressure capacity of stainless steel fittings, follow these guidelines:
- Consult Manufacturer Specifications: Always refer to the manufacturer’s datasheet for the specific fitting you are considering. This document will provide the pressure rating, temperature limits, and any relevant information regarding material properties.
- Look for Certifications and Standards: Ensure that the fittings comply with industry standards such as ASTM, ISO, or ASME. These certifications indicate that the fittings have undergone rigorous testing and meet safety requirements.
- Utilize Testing Methods: If you need to verify the pressure capacity of a fitting, consider using pressure testing equipment. Hydrostatic testing is a common method that involves filling the system with water and applying pressure to check for leaks or failures. This method is effective in identifying weak points in the system.
Common Applications and Their Pressure Requirements
Stainless steel fittings are utilized in a wide range of applications, each with its own pressure requirements. Here are some common examples:
- Hydraulic Systems: These systems often operate at high pressures, sometimes exceeding 3000 psi. It’s crucial to select fittings rated for these pressures to ensure safety and reliability. Hydraulic fittings must also be compatible with the hydraulic fluid being used, as certain fluids can affect the integrity of the fitting.
- Pneumatic Systems: Pneumatic applications typically operate at lower pressures, usually between 80 to 120 psi. However, selecting the right fittings is still essential to prevent leaks and maintain system efficiency. In pneumatic systems, the fittings must also be able to handle the rapid cycling of pressure that occurs during operation.
- Food and Beverage Industry: In this sector, fittings must not only withstand pressure but also meet hygiene standards. Stainless steel fittings are preferred due to their corrosion resistance and ease of cleaning. It’s important to choose fittings that are specifically designed for food-grade applications to ensure compliance with health regulations.
Troubleshooting Pressure Issues with Stainless Steel Fittings
Even with high-quality fittings, issues can arise. Here are some common problems and how to address them:
- Leaks: If you notice leaks, check the fitting connections for proper installation. Ensure that threads are clean and that seals are intact. If the leak persists, consider replacing the fitting, as it may be damaged or worn.
- Pressure Drops: A sudden drop in pressure may indicate a blockage or a failure in the fitting. Inspect the system for any obstructions, such as debris or kinks in the tubing, and replace any damaged fittings. Regular maintenance and inspection can help prevent these issues.
- Signs of Wear: Regularly inspect fittings for signs of corrosion, cracks, or deformation. Early detection can prevent more significant issues down the line. If you notice any signs of wear, it’s best to replace the fitting immediately to avoid potential failures.
Conclusion
Understanding the pressure capacity of stainless steel fittings is essential for anyone working with pneumatic or hydraulic systems. By considering factors such as material grade, temperature effects, and proper testing methods, you can ensure that you select the right fittings for your applications. Remember, adhering to pressure ratings not only enhances the performance of your systems but also ensures safety and reliability.
