If you manage compressed air, you’ve probably chased the same hiss week after week. Leaks creep in at fittings, couplers, and valves; they worsen with vibration, thermal cycling, and time. Beyond the noise, leaks burn energy, lower available pressure at the point of use, and mask deeper reliability issues in valves and actuators.
Most pneumatic leaks originate at threaded fittings, quick-connects, valve seals, and hose-to-fitting interfaces. A structured leak audit—zoned isolation, ultrasonic detection, and soap confirmation—lets you quantify losses (SCFM), prioritize by energy cost, and apply correct fixes: proper thread sealing, torque-to-spec, compatible O-rings, and replacement of degraded tubing. Prevent recurrence with higher-grade fittings, clean/dry air, strain relief, and scheduled ultrasonic surveys.
Below I’ll walk through a practical, plant-tested process: where to start, how to separate fitting vs. tube vs. valve leaks, the tools to measure and prioritize by ROI, and the design and maintenance moves that keep leaks from coming back.
Where should I start my leak audit to pinpoint the biggest air losses in my plant?
In my experience, the fastest savings come from a top-down, zoned approach—not from chasing random hisses. Start with the air balance and work inward.
Step 1: Establish the baseline and cost
- Measure compressor power and flow (if you have a master flowmeter). If not, log compressor kW and duty cycle during steady production.
- Estimate current leak load by measuring off-shift consumption when production is idle. That steady draw is mostly leakage.
- Translate SCFM to annual cost using hours and $/kWh. Even small leaks add up fast.
Step 2: Segment the network
- Use existing isolation/shutoff valves to create audit zones: compressor room, main headers, each branch/production cell.
- Close one zone at a time and watch header pressure decay or flow change to rank zones by leakage. This is the most efficient way to “find the big fish” before you go component-level.
Step 3: Sweep each high-loss zone
- Walk the zone with an ultrasonic leak detector; tag each find (barcode/QR tag helps). Add condition notes: fitting type, thread size, tube OD, valve model, accessibility.
- Confirm each suspect with a soap solution where safe to do so. Ultrasonic is fast; soap is definitive.
Quick reference: common sources and why they leak
- Threaded fittings and adapters: inadequate or excessive sealant, cross-threading, over-torque, thermal cycling, vibration.
- Quick-connect couplers: worn seals, side loading, frequent connects/disconnects.
- Valves and regulators: contamination/moisture score sealing faces; aged NBR seals harden.
- Hose-to-fitting interfaces: tube ovalization, improper insertion depth, missing ferrule support.
Table: Audit sequence and what to look for
| Audit step | What you measure | Why it matters | Tools |
|---|---|---|---|
| Off-shift baseline | System SCFM/kW | Quantifies total leak cost | Flowmeter or kW log |
| Zone isolation | Pressure decay/flow by branch | Pinpoints biggest losses | Isolation valves, gauges |
| Ultrasonic sweep | Leak locations | Rapid detection in noise | Ultrasonic detector/camera |
| Soap confirmation | Leak certainty | Eliminates false positives | Soap solution, brush |
| Tag & log | Part, size, material | Enables parts kitting & ROI | CMMS/Spreadsheet |
How do I verify if leaks come from pneumatic fittings, tubes, or solenoid valve seals on my lines?
Once a zone is ranked, you want to attribute leaks to the exact interface. I teach techs to “follow the flow path” and test interfaces in order of probability.
1) Fittings and threaded joints
- Tell-tales: directional hiss at joints; bubbles around threads; leak changes with slight touch (vibration-sensitive).
- Root causes I see often: PTFE tape wrapped backward or too many wraps; anaerobic sealant not cured; over-torque distorting tapered threads; galling on stainless.
- Fix: Remove, clean male/female threads, inspect for nicks; apply correct sealant; torque to spec.
2) Push-to-connects and tube seats
- Tell-tales: bubbles at the collet; leak reduces when you push tube in; tube end shows deep scratches or ovalization.
- Root causes: improper tube cut (angled/burred), tube not bottomed, incompatible tube OD tolerance, chemical or UV embrittlement.
- Fix: Re-cut square with a sharp cutter, deburr lightly, verify insertion depth, replace collet/grab ring if worn.
3) Tubing and hoses
- Tell-tales: pinholes along bends, abrasion marks on cable trays, kinks below min bend radius, splits near strain points.
- Fix: Replace with correct material/durometer; add strain relief and proper supports; reroute to avoid rub points.
4) Solenoid valve and regulator internals
- Tell-tales: constant exhaust at the valve muffler/pilot vent; inability to fully pressurize a downstream leg; pressure decay despite closed outlets.
- Root causes: debris on poppet/spool seals; water/oil contamination; aged NBR where FKM/PTFE is needed; seat scoring.
- Fix: Isolate and bench test. Clean internals, replace soft goods kits, match seal material to media and temperature.
Table: Symptom-to-source quick map
| Symptom | Likely source | Confirmation test | Typical fix |
|---|---|---|---|
| Bubbles at threads | Threaded fitting | Remove/clean/reseal; dye penetrant for cracks | Proper sealant + torque |
| Hiss at collet | Push-to-connect | Push tube fully; soap at collet | Re-cut tube; replace fitting |
| Continuous venting | Solenoid/regulator | Isolate valve; bench air test | Seal kit; clean; replace |
| Pinholes on bends | Tube/hose | Visual + soap | Replace; add supports |
| Leak varies with vibration | Loose joint | Gentle tap test | Re-torque/replace |
Standards worth noting:
- Thread sealing: Follow manufacturer torque specs for NPT/BSPT; avoid over-torque that distorts taper threads.
- Materials: For hot, oily, or chemical-laden air, NBR often underperforms—spec FKM or PTFE; for food contact, consider FDA-compliant seals and stainless bodies.
- IP ratings: Valves in washdown should meet appropriate IP ratings to protect exhaust ports and seals.
What tools and methods should I use to quantify leak rates and prioritize repairs?
Quantification is what turns a leak hunt into a business case. Here’s how we measure, convert, and prioritize.
Core toolset
- Ultrasonic leak detector or acoustic imaging camera: quickly finds and sizes leaks in SCFM or L/min.
- Soap solution: low-cost confirmation to eliminate false positives.
- Inline flowmeters at zones or machine feeds: validate leak load and post-repair savings.
- Pressure gauges/data loggers: capture decay tests and pressure stability.
- CMMS or structured spreadsheet: tag ID, location, part type, estimated SCFM, energy cost, repair status.
Methods I rely on
1) Off-shift flow method
- With production off, read total system flow. That steady number approximates total leakage.
- After repairs, repeat. The delta is your verified savings.
2) Pressure decay on isolated branches
- Pressurize a branch to a set pressure, close inlet, log decay vs. time.
- Use known volume to estimate equivalent leak flow. Even without precise volume, you can rank branches comparatively.
3) Device-level ultrasonic quant
- Many detectors provide an estimated leak rate by orifice model. It’s not perfect, but consistent enough for prioritization.
Prioritization framework
- Rank by annual cost: Leak SCFM × kW/SCFM × hours × $/kWh.
- Add a criticality factor: safety, product quality (e.g., cleanroom), impact on machine uptime.
- Target ROI < 6 months first. In most plants, 60–80% of savings comes from 20–30% of the leaks.
Example quick-priority table
| Leak ID | Estimated SCFM | Annual hours | $/kWh | kW/100 SCFM | Annual cost | Priority |
|---|---|---|---|---|---|---|
| V-12 (regulator exhaust) | 3.0 | 4,000 | 0.12 | 18 | ~$259 | Medium |
| F-07 (1/2″ NPT elbow) | 8.0 | 6,000 | 0.12 | 18 | ~$1,037 | High |
| QD-21 (quick-coupler) | 1.5 | 6,000 | 0.12 | 18 | ~$195 | Low |
Note: kW/100 SCFM varies by compressor type/control. Use your measured kW and flow for accuracy.
How can I prevent future leaks with better fittings, tubing, and maintenance schedules?
Sustainable leak reduction is a design-and-discipline exercise. The fixes are straightforward; consistency is the challenge.
Specify better components
- Fittings and connectors
- Choose high-quality push-to-connect fittings with nickel-plated brass or stainless bodies; ensure robust collets and O-rings.
- For washdown/food equipment, use stainless steel connectors and FDA-compliant seals.
- Avoid mixing thread standards; use proper adaptors instead of forcing fit.
- Seal materials and hardness
- Match seals to conditions: FKM/PTFE for higher temperature/chemical resistance; EPDM for hot water/steam proximity; NBR only for standard dry air.
- Verify durometer and size tolerances; compression set resistance matters for longevity.

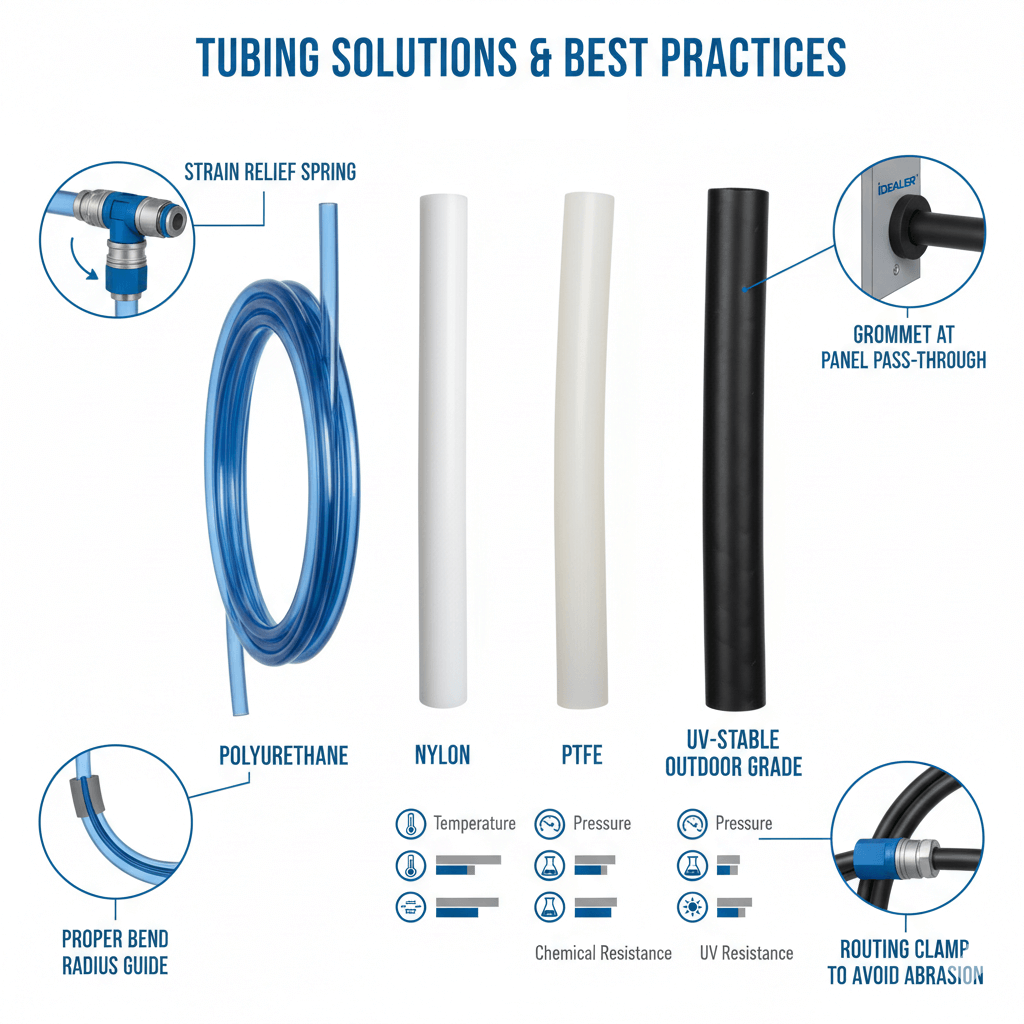

- Tubing and hoses
- Polyurethane for flexibility and abrasion resistance; nylon for higher pressure and temperature; PTFE for chemical resistance; consider UV-stable grades outdoors.
- Respect minimum bend radius; use tube supports and grommets at strain points.
- Add strain relief at moving interfaces and quick-couplers to avoid side loading.
Build process discipline
- Thread sealing best practice
- Clean, dry threads; chase damaged threads.
- PTFE tape: 2–3 wraps, correct direction, start one thread back to avoid shredding.
- Anaerobic sealant: correct grade for pneumatic service; cure per spec before pressurizing.
- Torque to manufacturer spec to avoid cracking bodies or distorting tapered threads.
- Assembly QA
- Square tube cuts with sharp cutters; deburr lightly.
- Mark insertion depth on tube to verify full seating in push-to-connects.
- Use torque wrenches on critical threaded joints.
- Air quality and protection
- Proper FRL sizing; maintain filters to ISO cleanliness appropriate for valves and instruments.
- Dryers (refrigerated or desiccant) to control dew point; moisture accelerates seal wear and valve leakage.
- Install point-of-use filters before sensitive valves and regulators.
Maintenance and monitoring cadence
- Monthly: ultrasonic spot-checks in high-mobility areas and quick-coupler zones; inspect hoses for abrasion and kinks; drain/filter checks.
- Quarterly: zone-wide ultrasonic survey; repair campaign for tagged leaks; verify torque on critical threaded joints; replace worn quick-connect seals.
- Semiannual: replace air filters; audit dryer performance and dew point; review material compatibility issues from any chemical/process changes.
- Annual: full plant leak audit with costed report; update standards for fittings, seal materials, and tubing based on findings; training refreshers for assemblers and maintenance.
Preventive table: cause vs. preventive action
| Cause | Why it happens | Preventive action |
|---|---|---|
| Vibration + thermal cycling | Loosens tapered threads; fatigues seals | Use threadlocker/sealant, torque-to-spec, use supports/anchors |
| Seal material mismatch | NBR hardens/cracks in heat/chemicals | Specify FKM/PTFE/EPDM as required; verify temperature/media |
| Over-torque/cross-thread | Distorts threads; crushes O-rings | Train techs; use torque tools; inspect threads |
| Tube/hose degradation | UV, oil, heat, abrasion | Select proper material; add guards and routing; periodic replacement |
| Contamination/moisture | Scores valves; prevents shutoff | Maintain dryers/filters; add point-of-use filtration |
Conclusion
From what I’ve seen in production environments, leaks are rarely a single bad fitting—they’re a pattern. Start with a structured audit, isolate the worst zones, and let ultrasonic detection lead you to the exact interfaces. Quantify in SCFM and dollars so repairs get prioritized and funded. Then fix it right: clean threads, correct sealant, torque to spec, compatible O-rings, and properly supported, application-appropriate tubing.
The key is consistent inspection and proper component selection. With quality fittings, clean/dry air, strain relief, and quarterly ultrasonic surveys, most plants can cut leak losses dramatically and keep them down. That’s not just quieter—it’s measurable reliability and ROI.
