I’ve spent a lot of time chasing down “mystery” performance losses and nagging noise complaints around pneumatic exhausts, so I’ve learned to treat mufflers as engineered components—not accessories. The wrong silencer can throttle your exhaust, slow cylinder return, create erratic valve timing, and even become a failure point when oil and condensate load it up. The right choice, on the other hand, will hit your dB targets, keep backpressure in check, and improve workplace safety and compliance without compromising machine cycle time.
Pneumatic mufflers include sintered bronze, inline absorptive/reactive designs, baffled multi‑chamber silencers, needle‑type speed‑control mufflers, spark‑arresting, and oil‑mist capture units. Selection should be driven by exhaust flow (Cv), acceptable backpressure, duty cycle, contamination load, and safety requirements. High‑flow, low‑backpressure models are best for rapid cycling; spark‑arresting and oil‑mist units address ignition and hygiene risks. Request supplier data: dB reduction per ISO test method, flow/Cv curves vs. backpressure, materials, temperature/pressure ratings, and applicable certifications (ISO 4414 guidance, CE, ATEX where needed).
In the sections below, I’ll map muffler types to real pneumatic scenarios, explain how flow and backpressure affect cycle speed, outline when to specify spark‑arresting or oil‑mist capture, and list the certifications and noise ratings I ask vendors to provide. I’ll also share material and design trade‑offs I consider for OEMs and maintenance teams.
Should I choose sintered bronze, inline, or baffled designs for my flow?
What I weigh first: flow, backpressure, and duty cycle
- I start with the exhaust side Cv of the valve or cylinder port and the expected peak mass flow during blow‑down. The muffler must pass that flow with minimal ΔP; otherwise you’ll see lag on retract/extend and slower valve de‑energization.
- For fast, repetitive cycles, I target “low‑backpressure” silencers with published ΔP vs. SCFM curves at the operating pressure. If the vendor only lists a nominal SCFM without ΔP data, I assume risk and oversize one thread class.
Core types and when I use them

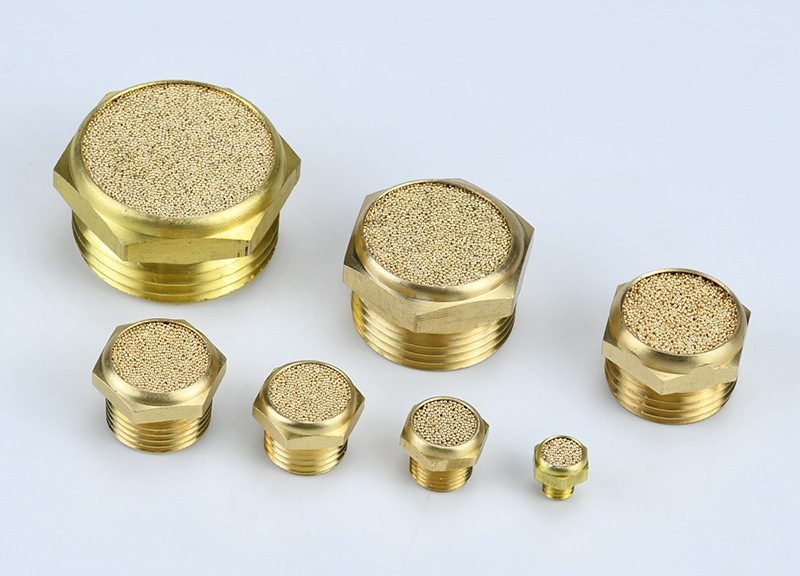

- Sintered bronze (end‑of‑port): My default for compact, low‑cost silencing on valve exhaust ports and cylinder rod ends. Great for general duty, but can load up with oil mist; I add maintenance intervals or choose clog‑resistant elements when FRL drains show heavy carryover.
- Inline absorptive/reactive mufflers: Two‑port units installed in the exhaust line. I use these when I need stronger attenuation without choking the port—larger body area, better acoustic packing, and more stable ΔP at higher flows.
- Multi‑stage baffled/reactive silencers: Best for broad‑band noise on large dump valves, compressors, or blow‑off manifolds. They’re physically bigger but offer high reduction with tuned chambers; I make sure the outlet is safe‑vented away from operators.
- Adjustable needle‑type (speed‑control) mufflers: Useful when I must throttle exhaust to control cylinder speed and also reduce noise. I never use them on applications requiring fast depressurization or crisp valve timing—they intentionally add backpressure.
- Foam/felt element mufflers: Strong absorption for low–medium pressures; I avoid them where oil carryover is high because they saturate and lose performance.
- High‑flow low‑backpressure silencers: My choice for rapid cycling, short stroke pick‑and‑place, high‑speed packaging, or ejector vacuum venting. Look for large open areas or engineered labyrinths that maintain laminar‑ish exhaust while minimizing turbulence.
Practical sizing tip
- Match thread size to the component port (e.g., 1/8–1/2 NPT), then check the muffler’s Cv or SCFM at 6 bar (87 psi) and compare to your exhaust demand. If your valve’s exhaust Cv is 0.5, I aim for a muffler with equal or higher effective Cv and confirm ΔP < 0.1–0.2 bar at peak flow.
Are high-flow low-backpressure models suitable for rapid cycling?
Short answer from my shop floor experience
Yes—provided the manufacturer publishes flow curves and you install with minimal restriction. Rapid cycling benefits from silencers designed with large surface area and short flow paths, so the exhaust doesn’t “push back” on the actuator.
What I verify before approving
- ΔP vs. flow curve at operating pressure (not just nominal SCFM).
- Element type and clog resistance; I prefer wire mesh or coarse sintered elements for high oil environments.
- Thermal rating if the exhaust runs hot (e.g., after air heater or nearby process heat).
- Maintenance interval guidance; I often specify visual inspections each PM cycle, and swap elements at a defined ΔP threshold if the muffler supports it.
Failure modes to avoid
- Cylinder stick–slip or bounce due to trapped backpressure—shows up as inconsistent pick timing.
- Solenoid coil heating because the valve can’t exhaust quickly—watch duty cycle and temperature rise.
- “Whistle” tones from poorly tuned reactive paths—choose multi‑stage designs if tonal peaks are a concern.
Do spark-arresting or oil-mist capture options meet my safety needs?
When I specify spark-arresting
- Flame or ignition risk zones (paint booths, solvent lines, combustible dust areas). Spark‑arresting elements use fine mesh or arrestor geometry to quench hot particles at the exhaust.
- If you operate in hazardous locations, I align muffler selection with the area classification and ensure materials are non‑sparking; I confirm compatibility with any ATEX/IECEx requirements for associated equipment.
When I specify oil-mist capture
- Food, pharma, clean assembly, and indoor facilities with stringent IAQ. Oil‑mist eliminating mufflers use felt/wool or coalescing packs to trap aerosol. They reduce fugitive emissions and keep floors dry.
- I watch for backpressure rise as elements load; I size larger housings and set replacement cadence based on visible staining or ΔP.
Combination units
- Silencer–filter combos are a practical way to meet both noise and hygiene. For OEMs, I use modular housings so maintenance can swap just the cartridge without removing the body.
What certifications or noise ratings should I request from the supplier?
What I ask for in every RFQ
- Documented noise reduction: dB(A) values and the test method (e.g., free‑field or reverberant per ISO 3744/3746) and measurement distance. I want baseline and with‑muffler readings at stated flow and pressure.
- Flow and backpressure data: Cv or SCFM curves vs. ΔP at operating pressures (5–7 bar typical). Without this, cycle impacts are guesswork.
- Standards alignment and safety: Conformance to ISO 4414 (pneumatic safety principles) and applicable directives. For hazardous areas, ATEX/IECEx suitability if the system is within that scope; for general machinery, CE declaration when sold into the EU.
- Materials and environmental ratings: Temperature and pressure limits; media compatibility (oil, water, solvents), corrosion resistance (stainless for washdown and chemicals).
- Maintenance guidance: Recommended cleaning/replacement intervals, clog‑resistant options, and whether elements are replaceable.
- Acoustic spectrum insight: If your process has tonal complaints, ask for frequency attenuation plots; baffled/reactive designs can be tuned to the dominant bands of cyclic exhaust.
Quick comparison table: materials vs. environment
| Muffler material | Typical use case | Temperature range (typical) | Pros | Cons |
|---|---|---|---|---|
| Sintered bronze | General valves/cylinders | -40 to 200°C | Compact, inexpensive, good attenuation | Can clog with oil; fixed geometry |
| Stainless steel (mesh/baffled) | Corrosive/washdown, high temp | -60 to 400°C+ | Durable, chemical resistant, serviceable | Higher cost, larger size |

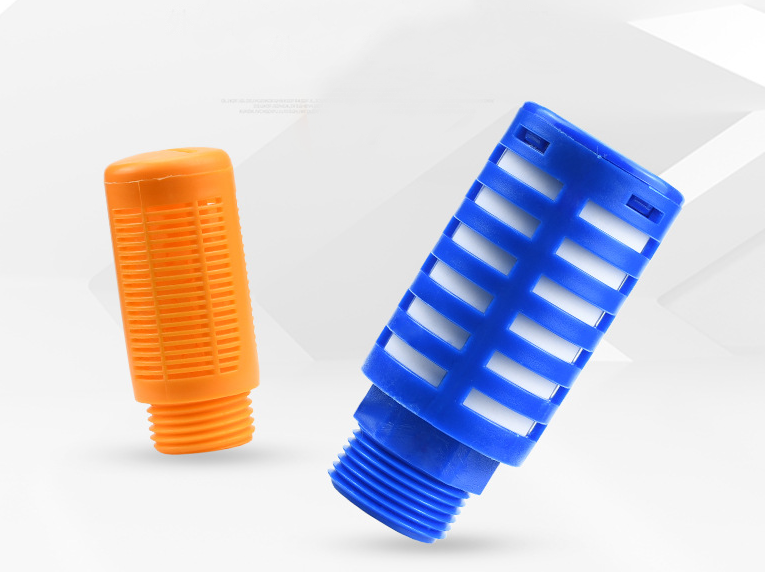

| Plastics/polymer | General indoor, non‑corrosive | -20 to 80–120°C | Lightweight, corrosion‑resistant, low cost | Lower temp limits, potential aging |
| Foam/felt elements | Clean, low–medium pressure | -20 to 80°C | Strong absorption, quiet | Oil saturation, faster pressure drop |
Selection trade-offs table: design vs. performance
| Design type | Best for | Backpressure impact | Noise reduction | Notes |
|---|---|---|---|---|
| Sintered bronze (end-of-port) | Compact installs, moderate flow | Low–moderate | Moderate | Watch clogging; choose larger thread if unsure |
| Inline absorptive/reactive | Higher flow, stronger attenuation | Low | High | Good for rapid cycling when sized correctly |
| Multi-stage baffled | Broad-band, high dump flows | Low–moderate | High | Larger footprint; route outlet safely |
| Adjustable needle/speed-control | Controlled exhaust speed | Intentional (throttling) | Moderate | Avoid for fast depressurization |
| Oil-mist eliminating | Hygiene/IAQ | Moderate (rises with loading) | Moderate–high | Plan maintenance; consider oversized housing |
| Spark-arresting | Combustible atmospheres | Low–moderate | Moderate | Verify area classification and materials |
My implementation checklist for OEMs and maintenance
- Verify exhaust Cv of each valve/cylinder and select a muffler with equal or higher effective Cv at your pressure.
- For rapid cycling, use high‑flow low‑backpressure units; avoid speed‑control mufflers unless cycle time can tolerate added ΔP.
- In oily systems, specify clog‑resistant elements, add PM inspection, and keep spare cartridges on hand.
- In hazardous or hygienic environments, choose spark‑arresting or oil‑mist capture designs and confirm standards alignment.
- Request vendor test data: acoustic method, dB(A) at stated conditions, and ΔP vs. flow curves. If not available, run a quick in‑plant test with a handheld sound meter and pressure transducer at the exhaust.
- Mount orientation matters: vertical helps drainage in oil‑laden systems; shield outlets from operator ear height to reduce perceived noise.
Conclusion
In my experience, mufflers are small parts with outsized impact on pneumatic performance, safety, and compliance. Sintered bronze is a dependable default for compact ports; inline and baffled designs deliver higher attenuation with better flow for fast cycles; spark‑arresting and oil‑mist units solve specific safety and hygiene problems. If you anchor selection on exhaust Cv, acceptable ΔP, contamination load, and the right certifications and acoustic data, you’ll avoid cycle slowdowns, reduce tonal complaints, and keep your plant within noise and safety targets.
