Should I pick sintered bronze, stainless steel, or polymer media for my plant?
I’ve specified, installed, and troubleshot hundreds of pneumatic exhaust mufflers in production settings—from packaging lines with oil‑mist exhaust to food-grade washdown zones and high-temperature test cells. The decision almost never comes down to “noise only.” It’s a multi-variable trade-off between acoustic attenuation, pressure drop, contamination resilience, cleanability, corrosion resistance, and the realities of maintenance budgets. I’ve seen plants overspend on stainless mufflers where polymer would have been fine, and I’ve seen sintered bronze clog prematurely because nobody planned for cleaning intervals or mist capture. The right answer is always context.
The most common muffler materials are sintered bronze, stainless steel (304/316/316L), brass, aluminum housings, sintered plastics (PE/PP), felt/fiber packs, ceramics, and hybrid composites. Sintered bronze is the general-purpose workhorse; stainless steel is the go-to for corrosive, washdown, sterile, or high-temperature environments; polymer media (PE/PP) are lightweight and low cost for standard pneumatic exhaust with good chemical resistance but lower temperature limits. Material choice should be driven by the plant’s air quality, chemicals, temperature/pressure, cleaning practice, and reusability expectations.
In the sections that follow, I’ll break down how I pick between sintered bronze, stainless, and polymer media; how corrosion and temperature ratings drive the choice; whether polymer housings actually save weight without sacrificing durability; and what different materials mean for cleaning, reusability, and long-term reliability. I’ll also share practical Cv/flow and clogging considerations that matter to OEM designers and maintenance teams alike.
How do corrosion and temperature ratings influence material choice?
The two filters I never skip: chemistry and heat
- Corrosion: I start with what the exhaust will see—ambient chemicals (cleaners, sanitizers, cutting fluids), humidity, and airborne chlorides. In food and pharma, I default to 316/316L stainless elements and housings because caustics and acids will pit bronze and embrittle many polymers over time. In general industry with neutral atmospheres, bronze or polymer is usually fine.
- Temperature: I check actuator and valve proximity to heat sources. Bronze typically handles up to ~200°C, stainless elements and housings can push higher (200–400°F depending on construction), while sintered PE/PP media are typically limited to ~80–100°C. If you have hot gas purge or elevated exhaust temperature after rapid cycling, plastics are risky.
Pressure and mechanical integrity
- Pressure: Most compact mufflers are used at typical plant pressures (6–10 bar). Stainless and bronze threaded bodies handle this easily. Polymer housings must be checked for creep and thread integrity; higher pressures or frequent impulse loading favor metal housings or metal inserts.
- Washdown and sterilization: If you CIP/SIP, the combination of chemicals, temperature, and frequent cleaning cycles points strongly to stainless steel. PTFE liners or coatings can help in aggressive chemistries when you want to minimize fouling.
Quick selection guide (corrosion/temperature-centric)
- Food/pharma washdown, sanitizers, NaOH, H2O2: 316/316L stainless sintered element + stainless housing; optional PTFE liner for anti-fouling.
- Neutral factory air, no caustics, moderate temps: Sintered bronze or polymer media; brass or aluminum bodies are common.
- High heat near ovens or test cells: Stainless element and housing; ceramic elements where extreme heat warrants.
- Oil‑rich exhaust (lubricated systems): Bronze handles oil well but will clog without cleaning; stainless can be more cleanable; polymer may swell with certain oils—check compatibility.
Will polymer housings reduce weight but compromise durability?
My practical take on polymer housings
- Weight and cost: Polymer housings absolutely reduce weight (useful for EOAT on robots or weight-sensitive manifolds) and cost. For general pneumatic exhaust, they’re widely used and reliable.
- Durability trade-offs: The compromise isn’t just strength—it’s thread integrity, impact resistance, and long-term creep under vibration and heat. If you’re mounting near moving actuators or where tools/parts might strike the muffler, a metal housing or at least a metal-threaded insert is safer.
Where polymer shines and where it doesn’t
- Shines: Low to moderate temperatures, clean environments, chemical resistance to many solvents (PE/PP), frequent replacement scenarios, large quantities where cost matters, and applications where size and weight are constrained.
- Doesn’t: Hot zones, aggressive cleaners, high mechanical shock, repeated disassembly/reassembly, and high-pressure impulses. In these cases, aluminum or stainless housings with polymer or fiber media can provide a better balance.
Durability checklist I use
- Threads: Are they molded polymer or metal inserts? Prefer metal inserts for repetitive maintenance.
- Impact: Will operators brush against it? Choose metal if impacts are likely.
- Heat: Any radiant heat >80–100°C? Move to bronze/aluminum/stainless.
- Chemistries: Check specific media compatibility charts—PE vs. PP vs. POM differ under solvents and oils.
- Vibration: Use robust housings and consider locking features; polymer can creep under sustained load.
How do material selections affect cleaning and reusability?
Cleaning realities by media
- Sintered bronze: Cleanable with solvent baths or ultrasonic cleaning to dissolve oil and particulates. Dry thoroughly before reinstalling to avoid pressure drop and spitting. Over-aggressive brushing can smear or deform pores.
- Sintered stainless: Best for repeatable cleaning cycles. Ultrasonic cleaning, steam, and many chemical washes are feasible. More resistant to pore damage; retains performance after multiple cycles if handled correctly.
- Sintered PE/PP (polymer media): Can be rinsed, but heat limits and solvent compatibility matter. Aggressive solvents may swell or degrade the matrix. Typically treated as consumable—replace rather than deep clean under harsh conditions.
- Felt/fiber packs: Often non-reusable in harsh apps; fibers can load up and mat. Replace on clogging to maintain exhaust flow.
- Ceramic elements: High heat tolerance and good durability; can be cleaned mechanically or ultrasonically. Avoid brittle fracture during handling.
Maintenance intervals and metrics
- Monitor backpressure: A small inline pressure gauge or trending valve response time (closing lag) can tell you when the muffler is restricting flow. Increased backpressure accelerates seal wear and can cause sluggish actuators.
- Establish cleaning triggers: For oil‑mist systems, I set conservative intervals (e.g., 1–3 months), then extend based on data. In dry air with good filtration, bronze or stainless elements can run much longer.
- Always re-rate flow: After cleaning, verify that Cv/flow is back to acceptable range. If not, replace—especially for polymer media.
Materials commonly used to make air mufflers
Metals

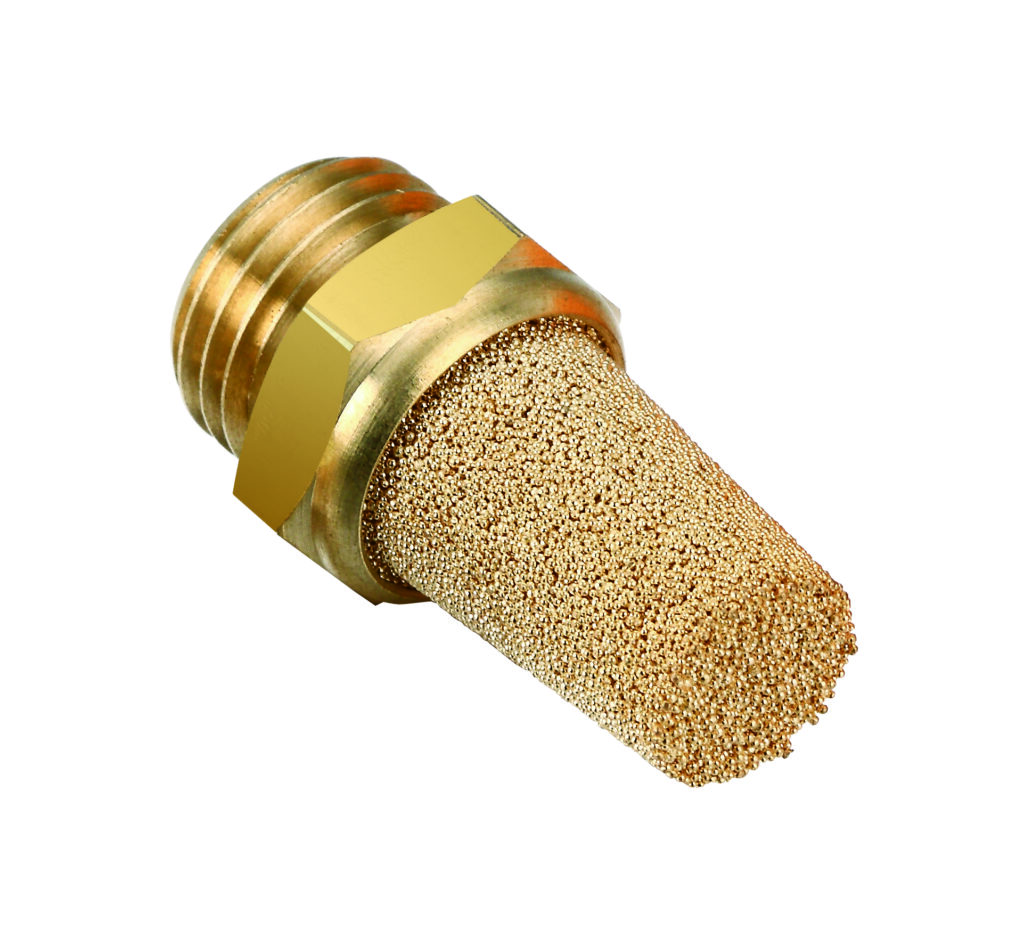

- Sintered bronze: Widely used; excellent diffusion and noise attenuation; economical; good with oil; moderate temp (~200°C).
- Stainless steel (304/316/316L): Premium corrosion resistance; washdown/sterile; higher heat tolerance; reusable with cleaning; higher cost.
- Brass (and nickel-plated brass): Durable bodies and threads; decent corrosion resistance; common for compact sintered elements.
- Aluminum: Lightweight housings and caps; good corrosion resistance; moderate temps; pair with bronze/stainless media.
Plastics and composites
- Sintered polyethylene (PE) and polypropylene (PP): Popular porous media for lightweight, low-cost mufflers; good chemical resistance; lower temp limits.
- POM (acetal) and nylon (PA): Used for housings/components; higher stiffness and wear resistance than PE/PP; check solvent/heat compatibility.
- Felt/fiber (polyester, glass fiber): Acoustic packing for certain designs; high attenuation; typically consumable.
- Ceramics: For high heat and durability where metals may oxidize or lose performance.
- PTFE coatings/liners: Applied for chemical resistance and anti-fouling in aggressive environments.
- Composite builds: Metal housings with polymer/fiber media to balance durability, weight, and acoustics.
Application-oriented comparison table
| Material / Construction | Typical Temp Limit | Corrosion Resistance | Cleanability / Reuse | Cost / Weight | Best-Fit Applications |
|---|---|---|---|---|---|
| Sintered Bronze Element | ~200°C | Fair in neutral; poor in caustic | Solvent/ultrasonic (good) | Low cost / medium weight | General-purpose, oil-mist exhaust |
| Sintered Stainless (316/316L) | 200–400°F (varies) | Excellent, incl. washdown | Excellent; repeatable cycles | Higher cost / higher weight | Food/pharma, corrosive, high-temp |
| Sintered PE/PP Media | ~80–100°C | Good vs many chemicals | Limited; often replace | Low cost / very light | Standard pneumatics, weight-sensitive |
| Brass/Aluminum Housings | ~150–200°C | Good to fair (depends alloy) | Good; threads robust | Moderate / light | Compact, cost-effective bodies |
| Ceramic Elements | High (>200°C) | High | Good; avoid brittle damage | Moderate / medium | High heat, durability |
| PTFE Liners/Coatings | Depends substrate | Excellent chemical resistance | Good; anti-fouling | Added cost / neutral | Aggressive chemicals, anti-stick fouling |
Flow, Cv, and clogging considerations I watch
- Element porosity vs. flow: Sintered elements attenuate noise by diffusing flow, but too fine a pore size increases backpressure. I match Cv to the valve/actuator exhaust requirements; a clogged muffler can double cycle times and heat up seals.
- Oil and particulate loading: Bronze handles oil but loads up; stainless is more forgiving with cleaning; polymer can swell with certain oils—check MSDS and compatibility.
- FRL impact: Good filtration upstream reduces mute clogging downstream; if you run lubricators, plan for more frequent muffler maintenance.
- Leak-proof design: Use thread sealants compatible with material; avoid overtightening polymer threads. On stainless, consider thread galling—use anti-seize.
Conclusion
When I choose muffler materials, I start with the environment (chemistry, washdown), the thermal envelope, and maintenance expectations. Sintered bronze is the economical generalist for neutral, moderate-temp plants. Stainless steel (316/316L) pays for itself in corrosive, hygienic, or high-heat areas because it survives cleaning and stays reusable. Polymer media and housings cut weight and cost for standard pneumatics but need careful checks on temperature, thread durability, and solvent/oil compatibility. If you need light weight without giving up robustness, composite solutions—metal housings with polymer or fiber media—balance the trade-offs. Most reliability problems I see are not material mistakes—they’re maintenance oversights and mismatched Cv/porosity. If you size for flow, respect chemistry and heat, and plan for cleaning, your mufflers will stay quiet, safe, and predictable.
