I’ve designed, specified, and troubleshot enough pneumatic lines to know that exhaust noise isn’t just annoying—it’s a real safety and performance issue. When a valve snaps shut or a cylinder vents, the exhaust can spike into painful impulse noise, and over time that exposure drives fatigue and OSHA violations. Buyers want quiet and compliant cells. Maintenance wants components that don’t clog or choke flow. And OEMs want predictable actuator speed without ballooning energy costs. In my experience, the humble air muffler—properly selected and placed—solves more of these problems than most teams expect.
An air muffler (pneumatic silencer) reduces exhaust noise by diffusing high‑velocity compressed air, cutting impulse peaks at the source, and often providing basic filtration of oil mist and particulates. It protects operators by lowering sound pressure levels at exhaust ports, and—when correctly sized—maintains acceptable backpressure so cylinders and valves keep their speed and response. Placement matters: close to the exhaust port minimizes impulse noise, but excessive restriction or long exhaust paths can hurt efficiency.
In the sections below, I break down how mufflers attenuate noise, what filtration they realistically provide, how location affects flow and efficiency, and how I balance dB reduction against backpressure using Cv, media choice, and maintenance intervals. I’ll also share practical selection tables and placement tips drawn from field commissioning across packaging, automotive, and general industrial automation.
How does it protect operators by cutting impulse noise at exhaust?
Why exhaust is loud in pneumatics
When a valve or cylinder exhausts, compressed air expands rapidly from system pressure (typically 6–8 bar / 90–120 psi) to atmosphere. That sudden expansion produces turbulent jets and pulsations that generate high sound pressure levels (SPL), including sharp impulse peaks. Un-silenced exhaust on standard 1/4″–1/2″ ports can exceed 90–100 dB at close range—well beyond typical exposure limits.

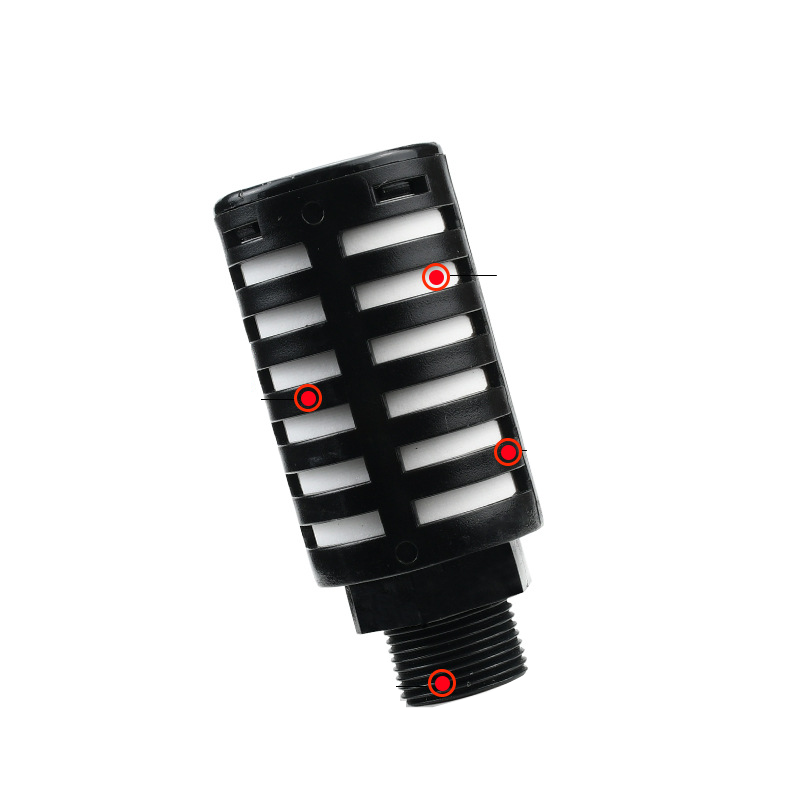

The silencing mechanisms I rely on
- Diffusion via porous media: Sintered bronze, stainless steel, or polymer elements break the jet into micro-flows, reducing velocity and turbulence. This directly lowers SPL and impulse peaks.
- Expansion and phase cancellation: Internal cavities allow pressure to drop before discharge; multi-path flow reflects and absorbs acoustic energy in the element.
- Flow smoothing: By damping pulsations, mufflers prevent the “crack” of valve exhaust that drives peak exposure.
Realistically, well-sized industrial mufflers deliver 15–35 dB attenuation, with the biggest benefits at the impulse peak. I size them so the exhaust jet is diffused close to the port—where the acoustic energy is born—rather than downstream in piping where the noise already propagated.
Can it also filter oil mist and particles from my discharge air?
What most mufflers filter—and what they don’t
Many standard mufflers incorporate sintered elements that provide basic filtration (think 40–100 µm nominal). They trap coarse particulates and some oil mist, keeping discharge cleaner and reducing oily film near machines. This is useful around packaging, food and beverage periphery, and electronics assembly lines concerned with airborne contamination.
However:
- Sintered elements are not coalescing filters. They won’t reliably capture sub‑micron aerosols or vapor-phase oil.
- High oil carryover from inadequate FRL maintenance will saturate elements, increasing backpressure and clogging.
When to specify advanced media
For applications with stricter environmental controls or operator exposure concerns, I use mufflers with integrated silencing chambers and coalescing media (often layered fibers). These offer better oil mist reduction and more consistent acoustic attenuation, but add resistance and require scheduled replacement.
Maintenance realities
- Inspect during PMs: Look for darkened, oily elements and rising cycle times (a proxy for growing backpressure).
- Replace on delta‑P or hours: Many plants set 6–12 month intervals depending on air quality.
- Protect upstream: A well‑maintained FRL (filter-regulator-lubricator), ideally with a coalescing stage, reduces oil loading into exhaust and extends muffler life.

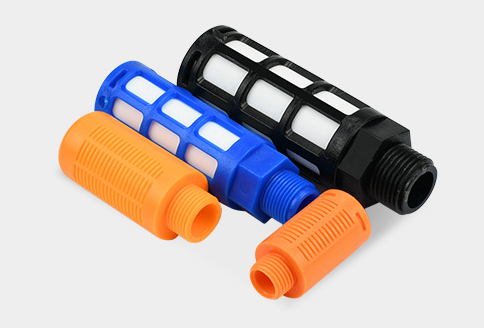

What impact does muffler placement have on system efficiency?
Placement principles I apply
- At the exhaust port: Mount directly on valve or cylinder exhaust ports to cut impulse noise at the source and minimize turbulent jet formation.
- On manifolds: For high-density valve manifolds, use compact low‑restriction mufflers or integrated manifold silencers to avoid cross-port interference.
- Avoid long exhaust lines: Remote venting through tubing increases friction losses and can generate whistling; if you must vent remotely, upsize tubing and use chambered silencers at the far end.
Efficiency considerations
Improper placement or overly restrictive media increases backpressure on exhaust. Symptoms include:
- Slower cylinder extension/retraction
- Sticky valve response and prolonged de-energize times
- Elevated compressor load due to longer cycle durations
- Heat and wear from trapped energy in actuators
I target a muffler that keeps exhaust backpressure below roughly 0.1–0.2 bar (1.5–3 psi) for most general automation. For fast-cycle packaging or high-speed pick-and-place, I push even lower.
Quick placement checklist
- Place as close as possible to exhaust ports
- Use straight-through designs for high-flow valves (Cv ≥ 1.0)
- Upsize thread if space allows (use adapters: 1/8″ port → 1/4″ muffler)
- Keep discharge unobstructed: guards or panels can reflect sound and add turbulence
How do I balance noise reduction with acceptable backpressure in my process?
My selection method, step by step
- Determine exhaust flow: Use valve size/Cv and line pressure; for cylinders, compute exhaust flow from bore/stroke, cycle rate, and pressure. I tend to add a 20% margin for dynamic spikes.
- Set backpressure target: Define the maximum acceptable exhaust backpressure for your speed and response. For most lines, <0.2 bar; for high-speed actuation, even lower.
- Choose media and geometry:
- Sintered bronze: Good balance of noise reduction and low restriction; robust and temperature-resistant.
- Sintered stainless: Better for corrosive or washdown; similar flow behavior.
- Polymer/fiber/coalescing: Superior mist capture and dB reduction; watch pressure drop.
- Chambered silencers: Multi-stage attenuation with tuned cavities; select high-flow variants.
- Verify Cv/flow curve: Good manufacturers publish Cv or pressure drop vs. flow. I cross-check at expected exhaust flow to confirm ΔP stays within target.
- Plan maintenance: If your air has oil carryover or dust, lock in inspection and replacement intervals to prevent gradual choking.
Common trade-offs I see
- Too restrictive mufflers do reduce noise—but they slow actuators and can raise total energy consumption per cycle due to extended run-time.
- Oversized, low-restriction mufflers keep cycles fast but may leave some impulse noise; I’ll use shields or local acoustic damping if needed.
- In hygienic or electronics environments, advanced coalescing mufflers are worth the added ΔP to reduce mist, provided cylinder timing is validated.
Comparison guide
| Muffler Type | Typical Media | Noise Reduction (dB) | Filtration Capability | Relative Backpressure | Best Use Case |
|---|---|---|---|---|---|
| Sintered Bronze | Porous bronze | 15–25 | Basic particulates, some oil | Low–Medium | General automation, robust, low-cost |
| Sintered Stainless | Porous stainless | 15–25 | Basic particulates, some oil | Low–Medium | Washdown, corrosive, higher durability |
| Chambered Silencer | Expansion cavities | 20–35 | Minimal without added media | Low–Medium | High impulse noise near operators |
| Coalescing Silencer | Fiber/coalescing + pore | 20–35 | Enhanced oil mist reduction | Medium–High | Sensitive environments, emissions |
Sizing reference (rule-of-thumb)
| Port Size (NPT/BSP) | Valve/Cylinder Class | Target Muffler Cv | Notes |
|---|---|---|---|
| 1/8″ | Small valves, Ø ≤ 25 mm cyl | ≥ 0.2–0.4 | Keep ΔP < 0.1 bar for rapid end-of-stroke |
| 1/4″ | Standard valves, Ø 32–50 mm | ≥ 0.5–0.8 | Use bronze or chambered for noise peaks |
| 3/8″ | High-flow valves, Ø 63–80 mm | ≥ 1.0–1.5 | Consider chambered or low-restriction type |
| 1/2″ | Large actuators, Ø ≥ 80 mm | ≥ 2.0 | Remote vent only with upsized tubing |
Practical tips I use on the floor
- Start with low-restriction media, then move to chambered/coalescing if SPL remains high around operators.
- If cycle time drifts up after installation, measure ΔP across the muffler during exhaust; rising ΔP indicates clogging.
- Avoid thread sealants migrating into the element—use minimal PTFE tape, keep first thread clean.
- For OSHA exposure limits, consider low-noise mufflers certified for workplace dB targets, and validate with a sound meter at operator positions.
Conclusion
In my experience, air mufflers are one of the simplest, highest-ROI upgrades in pneumatics: they cut impulse noise at the exhaust, help keep discharge cleaner, and—when correctly sized and placed—preserve actuator speed and valve response. The key is balancing media choice and geometry against your backpressure budget. Use manufacturer flow curves, set realistic ΔP limits, and plan filter maintenance. Do that, and you’ll meet noise regulations, protect operators, and avoid the hidden energy and performance penalties of an over-restrictive exhaust.
