What Are the Different Types of Pneumatic Mufflers?

A pneumatic muffler is a critical component in pneumatic systems, designed to reduce noise generated during the exhaust of compressed air. There are several types of pneumatic mufflers, including silencer, exhaust, inline, end-of-line, and adjustable mufflers, each with unique advantages and disadvantages. Silencer mufflers provide high noise reduction but may clog over time, while exhaust mufflers maintain airflow in compact designs. Inline mufflers are easy to install but offer moderate noise reduction, whereas end-of-line mufflers effectively minimize back pressure. Adjustable mufflers allow for customizable noise control but can be more complex and costly. Selecting the right muffler depends on specific application needs, noise levels, and system requirements, ultimately enhancing workplace safety and equipment longevity.
SU Type Plastic Muffler

Table of Contents

In the realm of pneumatic systems, noise control is not just a matter of comfort; it is a critical factor that can significantly impact workplace safety, productivity, and the longevity of equipment. Pneumatic mufflers are essential devices designed to mitigate the noise generated during the exhaust of compressed air. Understanding the various types of pneumatic mufflers, their functions, advantages, disadvantages, and specific applications is vital for anyone looking to optimize their pneumatic operations. This article will provide a comprehensive overview of the different types of pneumatic mufflers, ensuring you have the knowledge needed to make informed decisions.

What is a Pneumatic Muffler?

A pneumatic muffler is a device that reduces the noise produced when compressed air is released from pneumatic equipment, such as cylinders and valves. When air is expelled from these systems, it can create a loud, disruptive sound that not only affects the work environment but can also lead to hearing damage over time. Mufflers work by dissipating the energy of the escaping air, utilizing various mechanisms to absorb sound waves and reduce noise levels.

The fundamental principle behind pneumatic mufflers is based on the physics of sound propagation. When air exits a pneumatic system, it does so at high velocity, creating turbulence and noise. Mufflers are engineered to slow down this airflow and redirect it, allowing for a smoother exit that minimizes sound. By incorporating materials that absorb sound waves, mufflers can significantly lower the decibel levels associated with pneumatic exhaust.

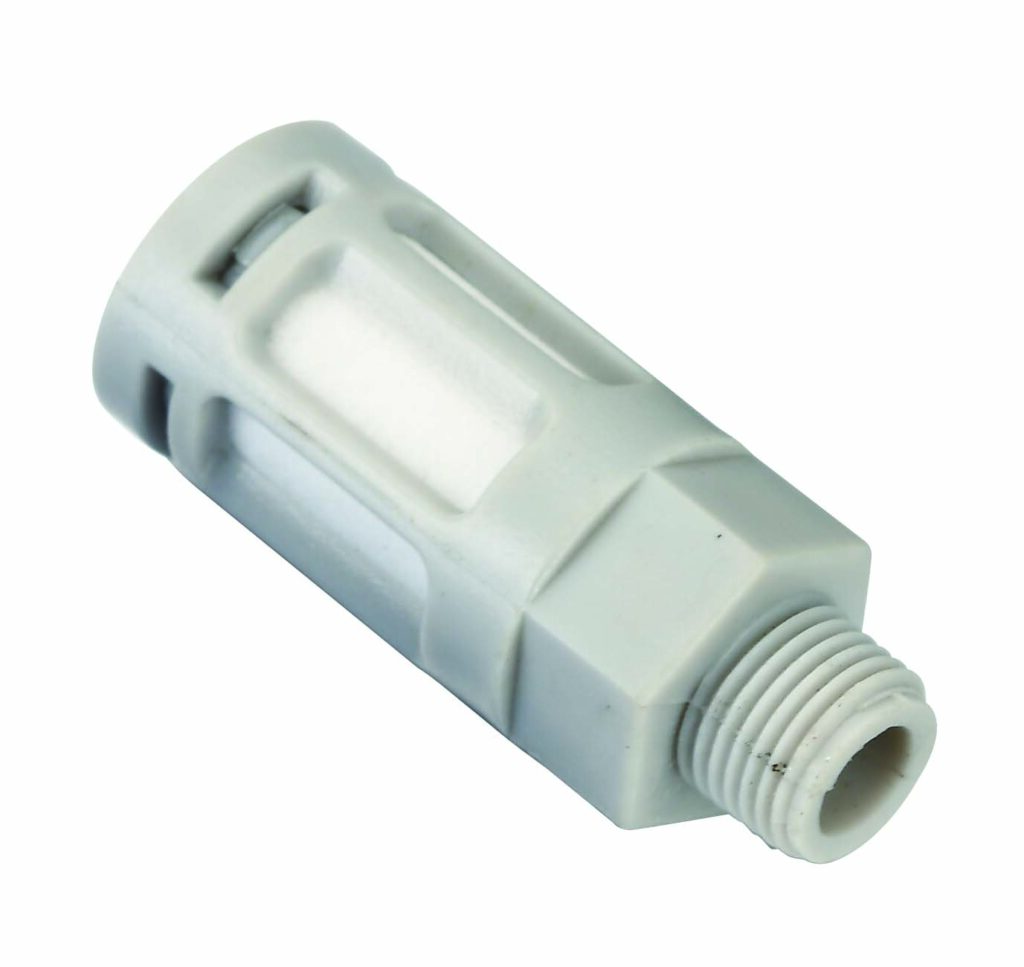

PSU Plastic Silencer (Grey)

Types of Pneumatic Mufflers

Pneumatic mufflers come in various types, each designed for specific applications and noise reduction needs. Here’s a detailed look at the most common types, including their advantages, disadvantages, and applications.

1. Silencer Mufflers

Description: Silencer mufflers are designed to absorb sound waves and significantly reduce noise levels. They typically feature a porous material that allows air to pass through while dampening sound.

Advantages:

  • High Noise Reduction: Silencer mufflers can lower noise levels by 20-30 dB, making them ideal for noisy environments.
  • Effective Sound Absorption: The porous material effectively absorbs sound waves, providing a quieter operation.

Disadvantages:

  • Potential for Clogging: Over time, the porous material can become clogged with dust and debris, reducing effectiveness.
  • Higher Initial Cost: Generally more expensive than simpler muffler types, which may be a consideration for budget-conscious operations.

Applications:

  • Manufacturing Plants: Ideal for environments where pneumatic tools are frequently used, helping to maintain a quieter workspace.
  • Assembly Lines: Effective in reducing noise in high-traffic areas where multiple pneumatic devices operate simultaneously.
  • Workshops: Commonly used in workshops where noise reduction is essential for worker comfort and safety.

2. Exhaust Mufflers

Description: Exhaust mufflers are specifically engineered to handle the exhaust from pneumatic cylinders and valves. They are designed to reduce noise while maintaining a high flow rate.

Advantages:

  • Compact Design: Often smaller and easier to integrate into existing systems, making them suitable for space-constrained environments.
  • Maintains Airflow: Designed to minimize noise without significantly affecting airflow, ensuring efficient operation.

Disadvantages:

  • Limited Noise Reduction: While effective, they may not provide as much noise reduction as silencer mufflers, which could be a drawback in extremely noisy settings.
  • Specific Use Cases: Best suited for specific applications, which may limit versatility in some operations.

Applications:

  • Pneumatic Tools in Confined Spaces: Ideal for applications where space is limited, such as in small workshops or mobile equipment.
  • Systems Requiring High Flow Rates: Suitable for high-speed pneumatic operations where maintaining airflow is critical.

3. Inline Mufflers

Description: Inline mufflers are installed directly in the air line, providing a straightforward solution for noise reduction. They can be easily replaced or serviced without disrupting the entire system.

Advantages:

  • Ease of Installation: Simple to install and replace, making them user-friendly and convenient for maintenance.
  • Versatile Applications: Can be used in a wide range of pneumatic applications, from light-duty tasks to heavy industrial operations.

Disadvantages:

  • Moderate Noise Reduction: Typically provide less noise reduction compared to silencer mufflers, which may not be sufficient in very noisy environments.
  • Potential for Back Pressure: If not sized correctly, they can cause back pressure, affecting system performance and efficiency.

Applications:

  • General Pneumatic Systems: Suitable for various pneumatic applications where moderate noise reduction is acceptable.
  • Light-Duty Tasks: Commonly used in light industrial settings where noise levels are manageable.

4. End-of-Line Mufflers

Description: End-of-line mufflers are positioned at the end of a pneumatic line, effectively reducing noise as air exits the system. They are designed to minimize back pressure.

Advantages:

  • Effective Noise Reduction: Reduces noise at the point of air exit, providing a quieter operation in critical areas.
  • Minimizes Back Pressure: Designed to allow smooth airflow, which helps maintain system efficiency and performance.

Disadvantages:

  • Limited Placement Options: Must be installed at the end of the line, which may not be feasible in all setups, especially in complex systems.
  • Less Versatile: Primarily effective for specific applications, limiting their use in diverse systems.

Applications:

  • Pneumatic Actuators: Ideal for applications where back pressure control is critical, such as in actuators that require precise control.
  • Valves in Systems: Commonly used in systems where noise reduction is necessary at the exhaust point.

5. Adjustable Mufflers

Description: Adjustable mufflers offer flexibility in noise reduction, allowing users to modify the level of sound attenuation based on specific needs.

Advantages:

  • Customizable Noise Reduction: Users can adjust the level of sound attenuation, making them suitable for varying noise levels in different applications.
  • Versatile Use: Can be adapted for different applications and environments, providing tailored solutions.

Disadvantages:

  • Complexity: The adjustable mechanism may require more maintenance and can be prone to failure if not properly maintained.
  • Higher Cost: Typically more expensive than fixed mufflers due to their adjustable features, which may not be justified in all applications.

Applications:

  • Environments with Fluctuating Noise Levels: Ideal for settings where noise levels vary significantly, such as in manufacturing processes with intermittent pneumatic tool use.
  • Heavy Industrial Operations: Suitable for operations where noise levels can change based on workload and equipment usage.
V Type Series Muffler

Conclusion

Choosing the right pneumatic muffler involves understanding the advantages and disadvantages of each type, as well as their specific applications. By selecting the appropriate muffler, you can effectively reduce noise levels, enhance system performance, and create a safer working environment. Investing in quality mufflers and maintaining them properly can lead to long-term benefits for your operations. If you have any questions or need assistance in selecting the right pneumatic muffler for your specific needs, feel free to reach out for expert guidance. Together, we can find the best solutions to optimize your pneumatic systems and ensure a quieter, more efficient workplace.
