Engineers and maintenance leads in pneumatic plants face a familiar trade-off: the bulletproof leak integrity of welded stainless connections versus the speed and serviceability of threaded joints. Compressed air, inert gases, hydrogen blends, steam tracing, and clean utility lines each punish joints differently—through vibration, thermal cycling, and corrosive condensates. Pick wrong, and you’ll chase fugitive emissions, galling lockups, or hot-work downtime that torpedoes OEE and budget.
Use welded fittings for high pressure, high temperature, vibration, or critical media where leaks are intolerable; use threaded stainless fittings for small-bore, lower-pressure lines that need frequent rework or fast turnaround. Welded wins leak integrity and longevity; threaded wins speed and lifecycle flexibility. In stainless, avoid galling with proper lubricants, torque discipline, and thread quality; for welded assemblies, qualify procedures and inspect HAZ health with appropriate NDE.
Let’s unpack the decision by ranking leak integrity, serviceability, cost, and environmental risks—then drill into weld procedure controls (PWHT, HAZ quality, NDE), thread installation best practices to prevent galling, and maintenance plans tailored to each joint type.

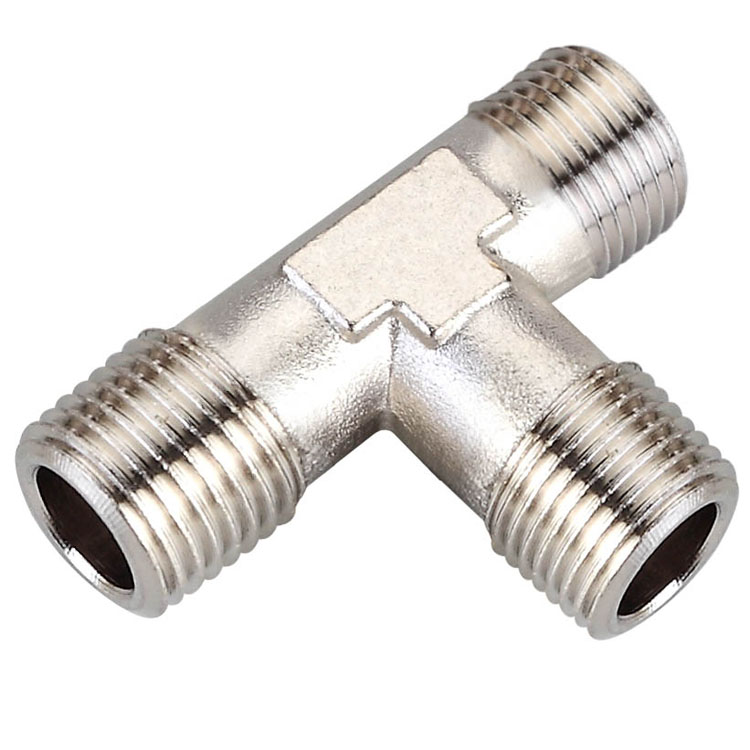

Welded vs Threaded Stainless: Side-by-Side Comparison
| Dimension | Welded Stainless Fittings | Threaded Stainless Fittings |
|---|---|---|
| Leak integrity | Excellent: continuous metal structure; minimal leak paths | Moderate: relies on thread form + sealant; more prone to weep under cycling |
| Pressure rating | Higher; governed by pipe/weld schedule; suitable for larger diameters | Lower; typical small-bore; stress concentration at threads limits fatigue |
| Temperature/vibration | Superior; no mechanical loosening, good for cyclic loads | Susceptible to loosening and fatigue; needs periodic retorque in vibration |
| Serviceability | Low: permanent; requires hot work for changes | High: fast install/remove; ideal for maintenance-intensive systems |
| Install time/labor | Slower; needs qualified welders, purge, fit-up, inspection | Faster; hand tools; minimal training; no hot-work permits |
| Galling risk (SS-on-SS) | None at the joint (no threads); watch spud/tack threads nearby | High; mandates anti-seize or MoS2/PTFE compounds; controlled torque |
| Cleanability/sanitary | Best; smooth bore; no crevice; CIP/SIP friendly | Poorer; crevices harbor bacteria; avoid in pharma/food unless hygienic designs |
| Corrosion behavior | Lower crevice corrosion risk; HAZ must be controlled | Crevice risk at threads and sealants; chloride environments are harsher |
| Cost (capex) | Higher labor, lower rework | Lower install cost; higher leak remediation risk |
| Lifecycle cost | Lower for critical services (fewer leaks/outages) | Lower for frequently reconfigured systems |
| Compliance/safety | Favored for toxic, hydrogen, steam; reduces fugitive emissions | Typically non-critical utilities; may fail compliance in severe media |
How do I weigh leak integrity, serviceability, and cost between welded and threaded joints?
Practical decision algorithm (what I use on projects)
- If any of the following are true, I specify welded:
- MAWP > 10 bar for gas or high stored energy
- Temperature > 120°C or CIP/SIP cycles
- Hydrogen, oxygen, toxic or costly media; emissions tracked
- Sustained vibration, pulsation, or frequent thermal cycling
- Sanitary design (pharma/food), or chloride-prone environment
- If the following dominate, I go threaded:
- Bore ≤ DN25 (1 inch) and pressure ≤ 10 bar
- Skids with frequent change-outs or expansions
- Utility air, nitrogen purge, test loops, prototype rigs
- Sites where hot-work permits/downtime are costly or impractical
Cost and risk balance (rules of thumb)
- Welded: higher upfront labor (fit-up, purge, welding, NDE), lower leakage risk and fewer call-backs. Less torque checks, fewer sealant compatibility issues, safer in hazardous media.
- Threaded: lower install time and immediate capex, but plan for leak hunts after commissioning, torque checks under vibration, and occasional galling-related replacements. Over a 3–5 year horizon, threaded can be cheaper on reconfigurable utility skids; welded is cheaper on critical backbone lines.
Application examples
- Compressed air header (DN80, 7–9 bar, long runs, outdoor): welded
- Instrument drops (DN10–DN15, 6–8 bar, many take-offs): threaded near point-of-use with unions, but isolate the header as welded
- Steam tracing or SIP circuits: welded (or hygienic clamp) to avoid crevices and sealant burn-off
- Hydrogen lab distribution (DN15–DN25, 10–20 bar): welded with qualified procedures; avoid thread leak paths
What should I check about PWHT, weld quality, and NDE for welded assemblies?
Welding procedure essentials for stainless pneumatic lines
- Material selection: 304/304L vs 316/316L
- I default to “L” grades to reduce sensitization and improve weldability.
- For chlorides or outdoor coastal exposure, 316L is safer.
- Process: GTAW/TIG is preferred for small-bore tubing/fittings; use argon purge to protect root.
- Heat input control:
- Keep interpass temperature low; minimize time in 450–850°C to avoid sensitization.
- Use stringer beads; avoid excessive weaving that increases HAZ width.
PWHT (Post Weld Heat Treatment)
- Most austenitic stainless pneumatic services do not require PWHT; improper PWHT can worsen sensitization.
- If stress-relief is specified (rare for austenitics), follow code and alloy-specific guidance; consider solution anneal for certain high-stress cases, but coordinate with metallurgist.
- Document: WPS/PQR stating no PWHT or controlled heat input, and specify pickling/passivation post-weld.
Weld quality checks I insist on
- Fit-up and prep:
- Proper bevels, clean surfaces (no hydrocarbon contamination), consistent root gap.
- Purge dams and oxygen monitoring (<50 ppm O2) to prevent sugaring.
- Filler selection:
- ER308L for 304/304L, ER316L for 316/316L; match chemistry to parent metal, consider Mo for chloride resistance.
- Surface treatment:
- Pickling/passivation after weld to restore chromium oxide; rinse and verify pH neutrality.
- Ferrite balance:
- Maintain appropriate weld metal ferrite number (FN) to resist hot cracking without compromising corrosion resistance.
NDE strategy by risk class
- Visual inspection (VT): 100%—check undercut, overlap, porosity, discoloration (heat tint implies poor purge).
- Leak test: pneumatic soap-test at operating pressure, or better, nitrogen/helium sniffing for critical lines.
- Dye penetrant (PT): selected welds—detect surface-breaking cracks, especially in vibration-prone areas.
- Radiography (RT) or phased array UT: for high consequence welds or when code/owner requires volumetric examination.
- Documentation: maintain WPS, PQR, welder quals, purge logs, and NDE reports; tie to isometrics for traceability.
How do I prevent galling and thread damage when installing SS threaded fittings?
What causes galling in stainless threads
- Austenitic stainless has high adhesion; under pressure and friction, oxide films break, micro-welds form, and threads seize.
- Heat from rapid tightening and poor lubrication exacerbates it. Once started, backed-out fittings often destroy threads.
Installation best practices I use
- Thread form and quality:
- Use precision NPT/NPTF or BSPT/BSPP per drawing; avoid mixing threads.
- Inspect for burrs and plating defects; chase damaged threads—don’t force them.
- Lubrication and sealants:
- Apply a nickel- or moly-based anti-seize rated for stainless; thin, even film on male threads.
- For sealing, choose PTFE tape or compatible anaerobic sealants; in gas service I prefer PTFE tape + anti-seize (do not overwrap—2–3 wraps).
- Verify chemical compatibility of sealant with media (oxygen service requires specific, non-hydrocarbon products).
- Torque discipline:
- Hand-tight to snug, then 1.5–3 turns with wrench for NPT depending on size; avoid impact tools.
- Use torque charts for BSPP/BSPT with bonded seals; aim for sealing without yielding thread flanks.
- Speed control:
- Tighten slowly to limit heat buildup; pause between turns on large sizes.
- Material pairing:
- Use dissimilar pairings where feasible (316 male into 304 female or with alloy/CoCr hard-facing) to reduce adhesion; or specify coated threads (silver/TiN) on high-risk sizes.
- Fitting selection:
- Prefer machined, polished threads; avoid cheap cast threads on stainless that tear easily.
- Consider double-ferrule tube fittings (compression type) when rework frequency is high; they reduce galling compared to tapered pipe threads.
Field checks to catch issues early
- If resistance spikes suddenly during make-up, stop and back out—inspect for pick-up; re-lubricate or replace.
- After pressurization, leak check with approved media; re-torque only once—repeated re-torque accelerates galling.
- Keep spares of frequently used sizes; once galling starts, salvage rates are low.
What maintenance and inspection plans should I set for each joint type?
Welded joints maintenance plan
- Inspection cadence:
- VT at commissioning; annual VT for discoloration, corrosion under insulation (CUI), and mechanical damage.
- PT on suspect welds in vibration zones or after overload events.
- Leak verification:
- Annual nitrogen/helium sniffing on critical gas lines; soap-test for utilities.
- Protection:
- Maintain supports and clamps to limit vibration; check expansion loops and anchors to avoid weld fatigue.
- Surface care:
- Re-passivate after mechanical repairs or grinding; avoid chloride-bearing cleaners.
- Records:
- Keep weld maps and NDE histories; trend any repeat indications to plan section replacements.
Threaded joints maintenance plan
- Initial run-in:
- 24–72 hours after startup, perform targeted leak checks; threads can settle.
- Routine:
- Quarterly leak surveys on vibrating equipment skids; semi-annual on general utilities.
- Torquing: re-torque only if leaks detected; indiscriminate retorque promotes galling.
- Spares and kits:
- Stock anti-seize, PTFE tape, oxygen-safe sealants (where applicable), thread gauges, replacement fittings.
- Replacement criteria:
- If galling marks or ovality are visible, replace rather than chase threads.
- For repeated leaks, upgrade to welded spools or compression fittings.
- Environmental controls:
- In chloride-rich or outdoor environments, consider protective boots or sealant changes; inspect for crevice corrosion staining at threads.
Conclusion
For stainless pneumatic systems, I treat welded vs threaded as a risk-and-lifecycle decision:
- Welded stainless fittings are my default for high pressure, elevated temperature, vibration, sanitary service, or hazardous media. They deliver superior leak integrity, lower fugitive emissions, and robust long-term reliability—provided you control heat input, purge quality, and verify welds with appropriate NDE.
- Threaded stainless fittings are my go-to for small-bore, lower-pressure utility and instrumentation where speed, serviceability, and flexibility matter. Prevent galling with the right anti-seize, controlled torque, and thread quality, and accept a proactive leak inspection program as part of the lifecycle.
If you’re splitting a plant: weld the backbone headers and critical circuits; thread the branches and maintenance-heavy drops. That’s the balance most sites find pays back in uptime and safety.
FAQ
Are compression (double-ferrule) fittings a better alternative to threads in stainless pneumatic lines?
Often yes for small-bore instrumentation. They reduce galling risk and allow repeated rework without sealants. For high vibration, choose reputable brands and follow make-up procedures precisely.
Do I ever need PWHT on austenitic stainless welds in pneumatics?
Rarely. Austenitic stainless typically does not require PWHT; focus on low heat input, purge quality, and post-weld passivation. If a spec calls for stress relief, consult a metallurgist to avoid sensitization.
What thread sealants are safe for oxygen or high-purity gases?
Use oxygen-approved PTFE tapes and non-hydrocarbon paste sealants certified for O2 service. Verify vendor datasheets; never use standard hydrocarbon-based anti-seize in oxygen systems.
How do I manage vibration on threaded joints?
Use proper supports, vibration isolators, and avoid cantilevered mass at fittings. Consider thread lockers where compatible (not for tapered gas threads), or switch to welded/compression fittings in high-vibration zones.
When should I switch from threaded to welded?
If leak rates persist after best-practice installation, if operating pressure or temperature climbs, or when media changes to corrosive/hazardous. A good trigger is two leak incidents in a quarter on the same circuit—upgrade that section to welded.
