Pneumatic fittings are essential components in the realm of fluid power systems, serving as the critical junctions that connect various elements of pneumatic machinery. These fittings facilitate the seamless transfer of compressed air, enabling a wide array of applications—from industrial automation and manufacturing processes to automotive systems and HVAC installations. Their reliability and efficiency directly impact the performance of pneumatic systems, making the selection of the right fittings paramount.
Choosing the correct size of pneumatic fittings is not merely a matter of convenience; it is crucial for ensuring optimal performance and safety. An ill-fitting component can lead to air leaks, reduced efficiency, and even catastrophic failures, underscoring the importance of precision in measurement and selection.
I. What is the Size of Pneumatic Fitting?
The size of a pneumatic fitting refers to its dimensions, which are critical for ensuring proper connections within pneumatic systems. This size is typically defined by the outer diameter of the connected hose, outer diameter of the fitting, the thread type, and the length of the fitting. Understanding these dimensions is essential, as they dictate how well the fitting will integrate with hoses, pipes, and other components in a pneumatic setup.
The size of pneumatic fittings significantly influences both performance and compatibility. A fitting that is too large or too small can lead to air leaks, reduced efficiency, and increased wear on system components. For instance, a fitting that does not create a secure seal can result in pressure loss, which diminishes the overall effectiveness of the pneumatic system. Conversely, using a fitting that is too small can restrict airflow, leading to inadequate performance and potential system failure. Therefore, selecting the correct size is vital for maintaining optimal functionality and reliability.
II. What Are the Different Sizes of Air Fittings?
In the world of pneumatic systems, air fittings come in a variety of sizes, each tailored to meet specific operational needs. The sizing of pneumatic fittings is a critical aspect of their design and functionality, and air fittings are defined by several key dimensions: tubing size, thread size, and length. Each of these measurements plays a critical role in ensuring that fittings meet specific operational needs and function effectively within a system.
1. Connected Tube Sizes
The tubing size refers to the nominal diameter of the tubing that the fitting connects to. This measurement is crucial because it directly affects the flow rate and pressure capabilities of the pneumatic system.
- Flow Rate: A fitting that matches the tubing size ensures that air can flow freely without restrictions. If the fitting is too small for the tubing, it can create bottlenecks, leading to reduced efficiency and performance.
- Pressure Compatibility: Properly sized fittings help maintain the system’s pressure. Mismatched sizes can lead to leaks or pressure drops, compromising the system’s effectiveness.
Connected tube sizes are integral to the functionality of pneumatic systems, as they dictate how air flows through the system. So the tubing sizes fittings connect to are determined the tube fittings sizes, Common tube connects fitting sizes include:
– 4mm, 6mm, 1/4″: Often used for light-duty applications, this size is suitable for small pneumatic tools and equipment. It provides adequate airflow for tasks that do not require high pressure or volume.
– 8mm, 10mm, 3/8″: This size is frequently employed in medium-duty applications, such as air compressors and larger pneumatic tools. It allows for increased airflow, making it ideal for tasks that demand more power and efficiency.
– 12mm, 14mm 16mm, 1/2″: Typically reserved for heavy-duty applications, this size is used in industrial machinery and high-capacity systems. It ensures maximum airflow and pressure, which are critical for optimal performance in demanding environments.
2. Thread Sizes
The thread sizes of pneumatic fittings are equally important, as they determine how fittings connect to other components, such as cylinder, filter, or valves etc.
Standardization: Thread sizes are often standardized (e.g., NPT, BSP), which facilitates compatibility across different manufacturers and systems. This standardization simplifies the selection process and ensures that components can be easily sourced and replaced.
Sealing and Security: The thread size determines how well the fitting seals with other components. A proper fit is essential to prevent air leaks, which can lead to inefficiencies and increased operational costs.
Common thread sizes include:
– NPT (National Pipe Thread): This is a widely used standard in the United States, with common sizes including 1/8″, 1/4″, 3/8″, and 1/2″. NPT fittings feature tapered threads that create a tight seal when connected, making them suitable for high-pressure applications, usually use teflon tape on pneumatic fittings male thread to seal.
– BSP (British Standard Pipe): Common in Europe and other regions, BSP fittings come in parallel (BSPP) and tapered (BSPT) varieties. Standard sizes include 1/8″, 1/4″, 3/8″,1/2″, and 3/4″. BSP fittings are known for their versatility and are often used in various pneumatic applications.
– Metric Threads: In many regions, metric thread sizes such as M5, M6, M8, and M10 are used. These fittings are designed to work with metric tubing and are commonly found in European pneumatic systems.
3. Length
The length of the fitting also contributes to its overall size and functionality. Different applications may require varying lengths to accommodate specific installation requirements or to ensure proper alignment within a pneumatic system.
The length of a fitting is also an important factor, as it can influence installation and alignment within a pneumatic system.
- Installation Flexibility: Different applications may require varying lengths to accommodate specific installation needs. For example, longer fittings may be necessary to connect components that are spaced further apart.
- Alignment: Proper length ensures that fittings align correctly with other components, reducing the risk of stress or damage to the system.
Understanding these dimensions—tubing size, thread size, and length—is vital for selecting the right air fittings for your pneumatic applications. By ensuring compatibility across these measurements, users can enhance the efficiency and reliability of their pneumatic systems.
III. How is Pneumatic Fitting Size Measured?
Measuring the size of pneumatic fittings accurately is crucial for ensuring compatibility and optimal performance in pneumatic systems. An incorrect measurement can lead to inefficiencies, leaks, and potential system failures. To achieve precise measurements, several techniques and tools are available, each suited for specific aspects of fitting measurement.
Measurement Techniques

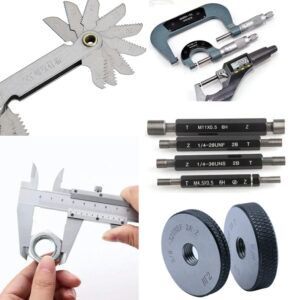

1. Calipers
- Digital Calipers: These are highly recommended for their ease of use and precision. Digital calipers can provide instant readings in both metric and imperial units, making them versatile for various applications. They typically feature a large display for easy reading and can measure both external and internal dimensions, as well as depths.
- Manual Calipers: While slightly less convenient than digital versions, manual calipers are still effective for measuring the outer diameter of fittings. They require a bit more skill to read accurately but are often more durable and do not require batteries.
2. Rulers
- A standard ruler or tape measure can be used for quick measurements, particularly for the length of the fitting. While rulers are useful for general measurements, they may not provide the same level of accuracy as calipers, especially for smaller fittings. For best results, use a ruler with fine markings and ensure it is aligned properly with the fitting.
3. Thread Gauges
- Thread gauges are specialized tools designed to measure the size and pitch of threads accurately. They come in various forms, including:
- Pitch Gauges: These help determine the thread pitch, which is the distance between threads. Knowing the pitch is essential for ensuring compatibility with other threaded components.
- Thread Identification Gauges: These gauges can help identify the type of thread (e.g., NPT, BSP) by providing a visual reference for comparison. This is particularly useful when working with fittings from different manufacturers or regions.
4. Micrometers
- For even greater precision, especially in industrial applications, micrometers can be used to measure the outer diameter of fittings. They provide highly accurate measurements and are particularly useful for small fittings where precision is critical.
Tips for Ensuring Accurate Measurements
- Calibrate Tools: Ensure that your measuring tools are calibrated correctly before use to avoid discrepancies in measurements.
- Take Multiple Measurements: Measure each fitting several times to account for any discrepancies and ensure accuracy.
- Use Proper Technique: When using calipers, ensure they are perpendicular to the fitting for the most accurate reading. For thread gauges, ensure the gauge fits snugly into the threads without forcing it.
- Record Measurements: Keep a log of measurements for future reference, especially when working with multiple fittings or components.
By employing these measurement techniques and tools, users can ensure that they accurately measure pneumatic fittings, leading to improved compatibility and performance in their pneumatic systems.
IV. How Do I Know What Size Air Fitting I Have?
Identifying the size of existing air fittings is essential for maintenance and upgrades. Here are some effective methods to determine fitting sizes:
Methods to Identify Existing Fittings
1. Check Manufacturer Specifications: Many fittings have specifications printed on them or available in the product documentation. This information can provide the size and type of fitting.
For our fittings, connected tube size usually marked on the release ring, labels are clearly printed on the package bags and cartons.
2. Use Measurement Tools: If specifications are unavailable, use calipers or rulers to measure the outer diameter and thread size directly.
Consulting technical documentation or product labels is crucial for accurate identification. These resources often contain detailed information about the fitting’s size, type, and compatibility with other components.
3. Visual Aids or Diagrams to Help Identify Sizes
Utilizing visual aids, such as diagrams or charts, can significantly assist in identifying fitting sizes. These resources can provide a quick reference for comparing different fitting types and sizes, making the identification process more straightforward.
V. Conclusion
Accurate measurement of pneumatic fittings is crucial for ensuring compatibility and optimal performance in pneumatic systems. By following the methods outlined in this article, you can confidently measure and identify the correct fitting sizes, preventing potential issues down the line.
We encourage you to utilize these techniques to enhance the efficiency and reliability of your pneumatic systems. For more resources, products, and expert advice on pneumatic fittings, we invite you to explore our website.
