I’ve spent a lot of hours next to loud manifolds, valve banks, and blow-off stations—long enough to know that compressed air exhaust noise isn’t just a nuisance; it’s a real HSE liability and a reliability risk. Engineers and maintenance teams fight a two-front war: protecting hearing and keeping backpressure low enough to avoid choking flow, slowing actuators, and driving up cycle time. Buyers need hard numbers—dB(A) reduction, pressure drop, flow capacity—while OEM designers want predictable attenuation across the frequency spectrum without risking clogging or a rise in system ΔP.

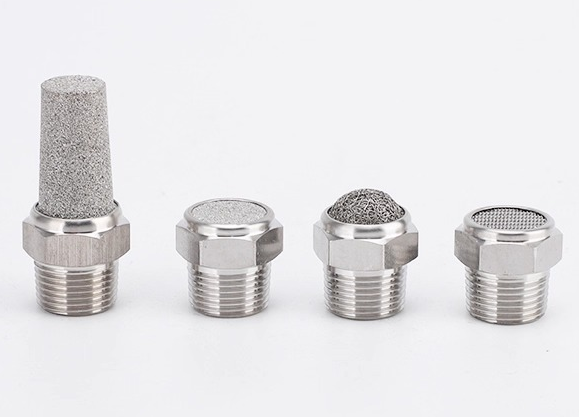

An air muffler reduces noise primarily by expanding and slowing the high-velocity exhaust to cut turbulent jet noise, while porous media absorb acoustic energy through viscous friction. Diffusion breaks the single jet into micro-jets, lowering broadband SPL, and reactive elements target tonal peaks via tuned cavities. Properly sized flow passages maintain safe backpressure, and multi-stage (reactive + absorptive) designs deliver wideband attenuation without choking flow.
In the sections that follow, I’ll unpack diffusion and absorption, show how pore size and geometry set frequency-dependent performance, outline practical dB measurement methods to validate HSE targets, and explain when multi-stage mufflers improve attenuation without throttling your exhaust. I’ll also add material and design comparisons, maintenance tips, and measurement pitfalls I’ve learned the hard way.
What role do diffusion and absorption play in sound attenuation?
How diffusion reduces jet noise
In my experience, the loudest contribution from compressed air exhaust is turbulent jet noise at the outlet. A diffuser-style muffler reduces Mach number by:
- Expanding the flow area to decelerate the jet.
- Splitting the single high-speed jet into many micro-jets through perforations or sintered pores.
- Increasing perimeter-to-area ratio, which enhances shear-layer mixing at lower velocities, removing the sharp tonal components typical of choked or near-choked jets.
The net effect is lower broadband sound pressure level (SPL) and fewer discrete tones (e.g., whistle-like peaks from sharp-edged ports).
How absorption converts sound energy to heat
Absorptive media—typically sintered bronze, stainless steel, or engineered polymers—attenuate sound via viscous and thermal losses in their pores:
- Viscous friction in narrow passages dissipates acoustic particle velocity.
- Thermal boundary layer interactions convert acoustic energy into heat.
- Impedance mismatch between free air and porous media reflects part of the wave back into the body, increasing the path length and cumulative losses.
Absorption dominates in mid-to-high frequencies where wavelength is comparable to pore passage dimensions; diffusion works across broadband by reducing flow velocity before discharge. In well-designed mufflers, I combine both: diffusion at the outlet face for jet control and absorptive bodies inside to damp the transmitted spectrum.
Reactive elements for low-frequency control
Low-frequency pulsations from large actuators or rapid valve cycling require reactive strategies:
- Expansion chambers and baffles introduce phase shifts.
- Helmholtz-like cavities target narrow-band peaks.
- Multi-chamber reflection interferes with dominant modes.
I use reactive stages upstream to knock down lows, followed by absorptive media to clean up mids and highs.
How does pore size and geometry affect frequency reduction?
Pore size: the first-order knob
- Small pores (20–60 µm typical in sintered bronze) favor high-frequency attenuation due to stronger viscous boundary layer effects but can increase ΔP and clog risk.
- Larger pores (100–300+ µm) pass more flow with lower ΔP, improving low-to-mid frequency transmission and reducing attenuation at the top end.
I size pores to the expected spectrum: finer media for hissy exhaust or whistle tones, coarser for pulsing flows that need volume without backpressure.
Geometry: thickness, tortuosity, and path design
- Thickness (media depth) increases path length and cumulative losses—more attenuation but more ΔP.
- Tortuosity (irregular pathways) enhances absorption by increasing shear interactions, often used in graded or layered media.
- Perforated sleeves plus a lined cavity create hybrid behavior: partial reaction + absorption.
Frequency-dependent behavior (rules of thumb)
- Low frequency (≤500 Hz): Reactive chambers and larger internal volumes work best; pores have limited leverage alone.
- Mid frequency (500–3,000 Hz): Sintered media dominate; choose pore size to balance attenuation vs. ΔP.
- High frequency (>3,000 Hz): Fine pores and fibrous or foam liners excel; avoid sharp outlet edges that can regenerate tones.
Quick comparison: media choices and behavior
| Media type | Typical pore size | Attenuation strength (HF/MF/LF) | ΔP risk | Clogging risk | Notes |
|---|---|---|---|---|---|
| Sintered bronze (SB) | 20–100 µm | HF: High / MF: High / LF: Low | Medium | Medium | Robust, oil-tolerant; common on valves |
| Sintered stainless | 40–150 µm | HF: Medium / MF: Medium / LF: Low-Med | Low-Med | Low-Med | Better in corrosive/food environments |
| Polymer foam / fiber | 50–300 µm equiv. | HF: High / MF: Medium / LF: Low | Low | High | Great HF damping; watch oil saturation |
| Perforated + cavity | N/A | HF: Med / MF: Med / LF: Med-High | Low | Low | Reactive-absorptive hybrid; tuneable |
How can I measure dB reduction to validate my HSE targets?
Measurement setup I trust
- Instrument: Class 1 or Class 2 sound level meter (SLM) with A-weighting; calibrate before and after.
- Distance: 1 meter from outlet, mic at the same height, pointing at the exhaust axis; document geometry.
- Environment: Minimize reflections (or note them); avoid other noise sources; record ambient SPL for subtraction where appropriate.
- Sampling: Fast and Slow time constants; Leq over multiple duty cycles; capture octave or 1/3-octave bands to see frequency shifts.
I baseline the “no muffler” condition and then repeat with each candidate muffler under identical operating pressure, valve timing, and load.
Metrics to report for HSE compliance
- LAeq (A-weighted equivalent level) over representative cycles.
- LAFmax/LASmax for peak exposure risks near operators.
- Octave band spectrum to show dominant bands and attenuation behavior.
- ΔP across the muffler at the actual exhaust mass flow (use a differential gauge or inferred from valve Cv and cycle profile).
Practical pitfalls
- Backpressure change alters source spectrum; measure noise and ΔP together.
- Wind and flow impingement can bias readings; use a windscreen and consistent mic placement.
- If the exhaust intermittently chokes, small geometry changes can create tones—check 1/3-octave plots for narrow peaks.
Will multi-stage mufflers improve attenuation without choking flow?
Yes—if staged correctly. I pair reactive and absorptive elements to widen the attenuation band while managing ΔP.
My staging approach
1) Reactive front-end (low frequencies)
- Expansion cavity or Helmholtz resonator targets pulsation modes.
- Perforated tube introduces phase delays and partial reflections.
2) Absorptive body (mid/high frequencies)
- Sintered or layered media converts the transmitted spectrum to heat.
- Diffusive outlet breaks residual jets into micro-jets.
3) Flow area sizing
- Keep total open area several times the valve port area; aim for exit Mach < 0.3 at peak exhaust.
- Use larger mufflers than minimum to lower velocity and stabilize broadband performance.
Backpressure management and reliability
- Maintain ΔP below your actuator’s allowable backpressure (often <0.1–0.2 bar for fast-cycling valves).
- Place mufflers as close to the exhaust port as possible to avoid pipe-borne amplification and reflections.
- Schedule cleaning/replacement; clogging narrows effective pores, raises ΔP, and can paradoxically increase noise by reintroducing jet tones.
Trade-offs: attenuation vs. flow
| Design option | Attenuation gain | ΔP impact | Best use case |
|---|---|---|---|
| Larger body area | High (broadband) | Low | General valve exhaust, high duty |
| Reactive + absorptive combo | High (wideband) | Low–Medium | Pulsing systems, tonal peaks |
| Fine-pore absorptive only | High (HF/MF) | Medium–High | Hissy exhaust, non-pulsing loads |
| Diffuser-only outlet | Medium (broadband) | Low | When ΔP budget is tight |
Implementation checklist (based on my field notes)
- Match muffler flow rating (Cv or scfm) to valve exhaust at peak cycle; size up when in doubt.
- Favor multi-stage designs for mixed spectra; a reactive stage for lows plus absorptive media for mids/highs.
- Use stainless or coated materials in corrosive, washdown, or food-grade environments; bronze is fine for general shop air.
- Verify ΔP across the muffler in situ—don’t rely only on catalog data.
- Validate LAeq and spectral attenuation at 1 m; repeat after maintenance intervals.
- Install mufflers directly on the exhaust ports to limit pipe resonance and reflections.
Conclusion
In my experience, the most effective air mufflers cut noise at the source by slowing and diffusing the exhaust and then absorbing what remains. Diffusion tackles turbulent jet noise; absorptive media convert acoustic energy to heat; reactive cavities clean up low-frequency pulsations. Pore size and geometry set the frequency response and ΔP, so I size the media to the spectrum and flow, then validate with disciplined dB measurements and ΔP checks. Multi-stage designs—reactive plus absorptive—typically deliver the best wideband attenuation without choking flow, especially when the muffler is oversized modestly, located at the exhaust port, and kept clean. With that approach, hitting HSE targets becomes repeatable rather than hopeful.
