Introduction
Pneumatic and hydraulic cylinders both convert fluid power into linear mechanical motion, but they operate using fundamentally different principles and excel in distinctly different applications. Understanding these operational differences is critical for engineers specifying motion control systems in industrial automation, manufacturing, and mobile equipment.
At the most basic level, pneumatic cylinders use compressed air as their working medium while hydraulic cylinders utilize incompressible fluid—typically oil. This seemingly simple distinction leads to dramatic differences in performance characteristics including force output, speed control, energy efficiency, and maintenance requirements. Compressed air systems operate at relatively low pressures between 60-150 PSI, while hydraulic systems routinely work at 1,000-5,000 PSI, enabling hydraulic cylinders to generate much greater forces from equally sized packages.
The choice between pneumatic and hydraulic cylinders ultimately depends on specific application requirements regarding force, precision, operating environment, and total cost of ownership. Pneumatic systems dominate in clean, high-speed applications requiring moderate forces, while hydraulic systems prevail where extreme forces or precise motion control are needed, even in harsh environments. This article will dissect seven key operational differences that every mechanical engineer and system designer must consider when selecting between these two power transmission technologies.
How Do the Working Fluids Affect Operational Characteristics?
Compressibility Differences Between Air and Hydraulic Fluid
The compressibility of air versus the near-incompressibility of hydraulic oil creates fundamentally different operating behaviors:
- Pneumatic systems exhibit “springiness” during operation due to air compression/expansion, making precise position control challenging without additional components
- Hydraulic systems provide nearly instantaneous force transmission with minimal elasticity because oil compresses less than 0.5% even at 3,000 PSI
Viscosity and Temperature Effects
- Hydraulic oil viscosity changes significantly with temperature (30-100 cSt typical range), requiring viscosity index (VI) improvers and sometimes oil heaters/coolers
- Air viscosity remains relatively constant across industrial temperature ranges (-20°F to 200°F), though moisture content must be managed
Contaminant Sensitivity Comparison
| Contaminant Type | Pneumatic Impact | Hydraulic Impact |
|---|---|---|
| Particulates | Wears seals and bearings | Wears pumps, valves, cylinders |
| Water | Causes corrosion, washes out lubricants | Promotes oxidation, microbial growth |
| Chemical | Degrades rubber components | Attacks seals, degrades oil |
What Are the Force and Power Density Differences?
The fundamental difference in operating pressures between pneumatic and hydraulic cylinders leads to dramatic variations in force output, power density, and force control. Understanding these distinctions is critical for engineers who need to size actuators correctly for various industrial applications—from light-duty clamping to heavy-duty pressing operations.
Maximum Force Output Comparison
Hydraulic cylinders can deliver significantly greater force outputs than pneumatic cylinders due to their ability to operate at much higher fluid pressures. While typical pneumatic systems work at 60–150 PSI, hydraulic systems commonly operate between 1,000–5,000 PSI (and up to 10,000 PSI in ultra-high-pressure applications). This pressure differential means that, even with the same bore size, a hydraulic cylinder can generate forces that are 15–50 times greater than an equivalently sized pneumatic cylinder.
Typical Force Output Ranges
| Cylinder Type | Force Range (Approx.) | Typical Applications |
|---|---|---|
| Pneumatic (at 100 PSI) | 50 lbf – 5,000 lbf | Clamping, part ejection, lightweight lifting |
| Hydraulic (at 3,000 PSI) | 500 lbf – 250,000 lbf | Metal forming, injection molding, heavy lifting, pressing |
Real-World Example:

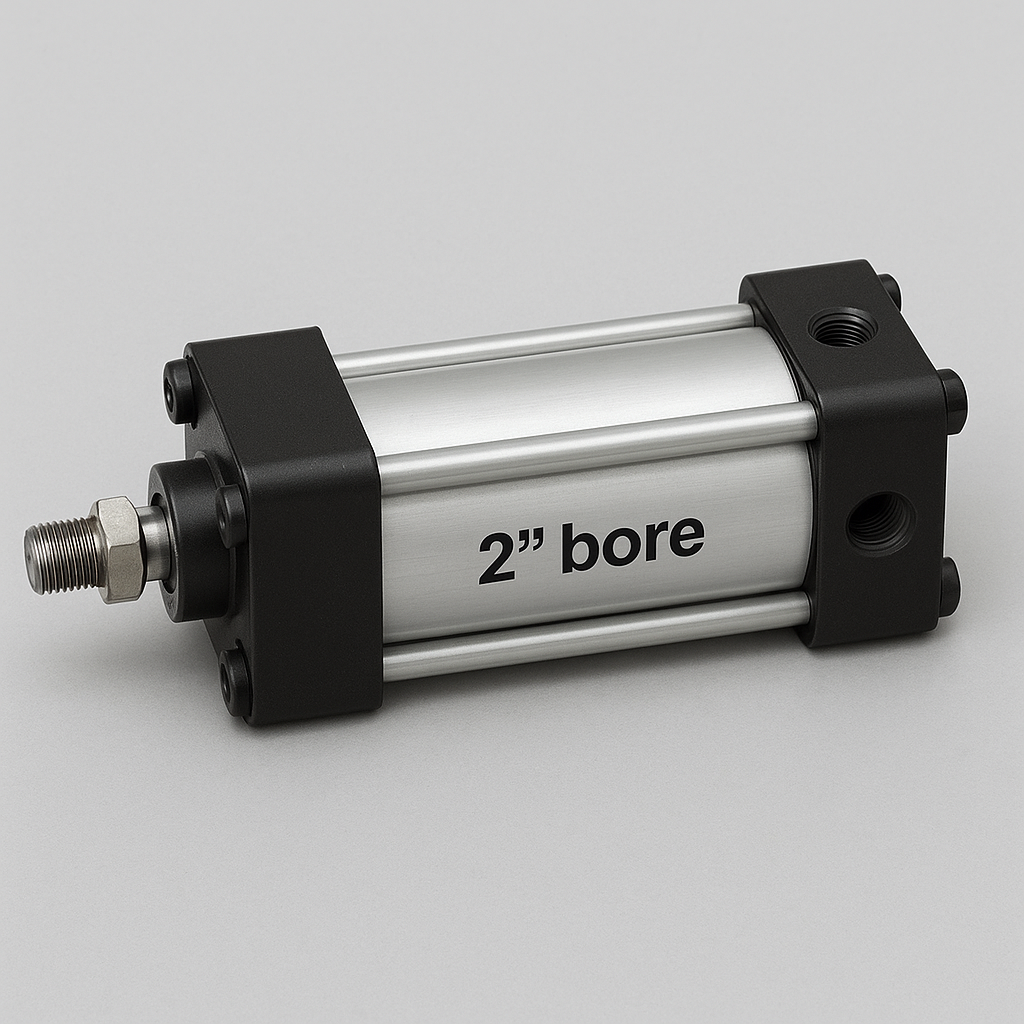

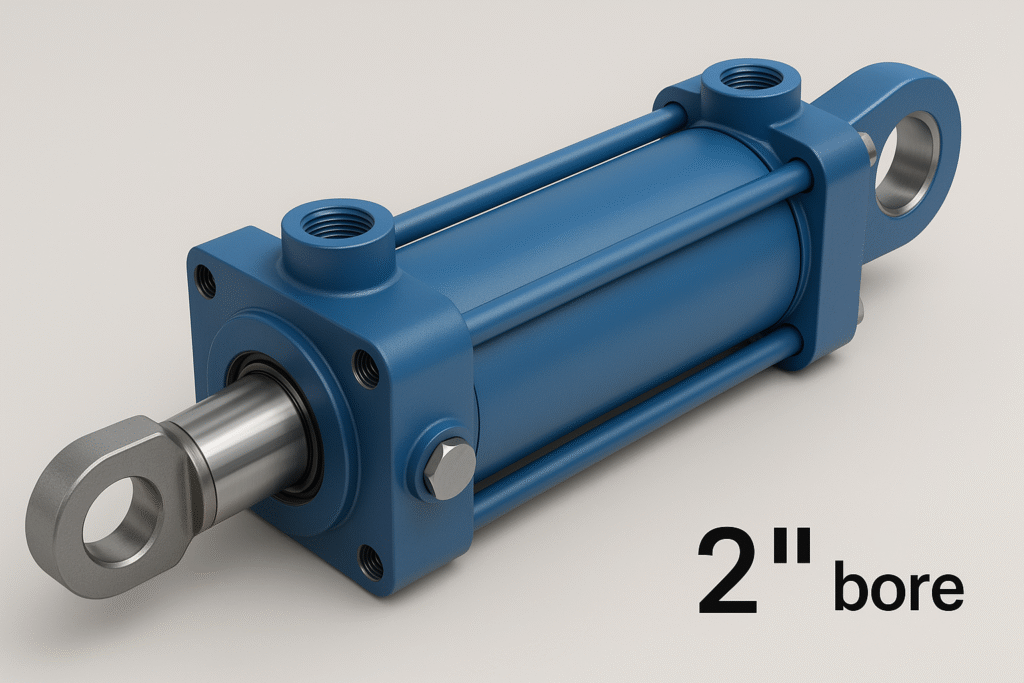

- A 2″ bore pneumatic cylinder at 100 PSI generates around 314 lbf.
- The same 2″ bore hydraulic cylinder at 3,000 PSI produces 9,420 lbf—30 times more force than the pneumatic equivalent.
Power Density Example Calculation
For pneumatic systems:
Force (F) = Pressure (P) × Piston Area (A)
- 4” bore (2” radius) at 100 PSI:
- A = π × (2)² = 12.56 in²
- F = 100 PSI × 12.56 in² = 1,256 lbf
For hydraulic systems (same cylinder size but at 3,000 PSI):
- F = 3,000 PSI × 12.56 in² = 37,699 lbf
This means a hydraulic cylinder can generate nearly 30 times more force than a pneumatic cylinder of the same size.
Impact on System Design:
- Pneumatic systems require larger bore cylinders (6″, 8″, or even 10″) to achieve higher forces, increasing space requirements.
- Hydraulic systems can achieve extreme forces with relatively compact cylinders by leveraging high-pressure fluid.
Dynamic Force Control Capabilities
Pneumatic Cylinders:
- Typically function in binary states—full extension or full retraction—with limited force modulation.
- Force output is load-dependent—since air is compressible, resistance affects speed and force.
- Applications: Best for simple motions like pushing, pulling, or clamping where precise force control isn’t critical.
Hydraulic Cylinders:
- Allow continuous force adjustment through precision pressure-regulating valves.
- Can maintain constant force even under varying loads, thanks to the incompressibility of hydraulic fluid.
- Advanced servo-hydraulic systems enable force profiling—gradual ramping up/down for delicate operations.
- Applications: Pressing, punching, injection molding, and applications requiring exact pressure control.
Practical Implications for System Design
| Consideration | Pneumatic | Hydraulic |
|---|---|---|
| Force Adjustability | Limited (via pressure regulator) | Highly adjustable (servo valves, pressure controls) |
| Response Time | Faster (air compressibility allows rapid motion) | Slightly slower (fluid inertia) |
| Shock Absorption | Poor (rigid force transmission) | Better (oil acts as a cushion) |
| Precision Load Holding | Requires locking mechanisms | Built-in due to fluid incompressibility |
For applications requiring both speed and force, engineers may need to evaluate electromechanical actuators as a third alternative, though pneumatics and hydraulics remain superior for harsh industrial environments.
How Does Speed and Motion Control Compare?
The speed and motion control differences between pneumatic and hydraulic cylinders significantly impact their suitability for various automation applications. Understanding these characteristics helps engineers optimize cycle times, positioning accuracy, and overall system performance.
Typical Operating Speeds
| Characteristic | Pneumatic | Hydraulic |
|---|---|---|
| Maximum Speed | 50 in/sec (1.27 m/s) | 20 in/sec (0.51 m/s) |
| Minimum Speed | 0.5 in/sec (12.7 mm/s) | 0.01 in/sec (0.25 mm/s) |
| Acceleration | Very fast (instantaneous) | Moderate (fluid inertia) |
| Deceleration | Requires cushions | Controlled via valves |
Why These Speed Differences Exist:
Fluid Dynamics Factors:
- Pneumatics: Compressed air expands rapidly, allowing near-instant acceleration
- Hydraulics: Oil’s viscosity creates fluid resistance, limiting peak speeds
Control Methodologies:
- Pneumatic speed typically adjusted via flow control valves
- Hydraulic speed controlled through variable displacement pumps or servo valves
Energy Efficiency Considerations:
- High-speed pneumatics consume large air volumes
- Hydraulics maintain efficiency better at lower speeds
Motion Control Precision Comparison
Hydraulic System Advantages:
- Position Accuracy (±0.001″ with servo hydraulics)
Closed-loop systems with linear transducers enable micron-level positioning for applications like:
• CNC machine tool rams
• Plastic injection molding machines
• Precision metal forming presses - Velocity Profiling Capabilities
Programmable acceleration/deceleration curves prevent:
• Part damage in delicate assembly
• Vibration in heavy load movement - Force-Controlled Operations
Pressure transducers allow real-time force adjustments during:
• Press-fit assembly
• Compression testing
• Clamping operations - Synchronized Multi-Axis Motion
Proportional valves enable coordinated movement across:
• Steel mill rolling stands
• Aerospace component test rigs
• Automotive body panel forming
Pneumatic System Advantages:
- Rapid Reciprocation (Up to 1200 cycles/minute)
Ideal for high-speed automation like:
• Bottle capping machines
• PCB component insertion
• Packaging material cutting - Simple On/Off Control
Minimizes complexity for:
• Door operators
• Conveyor diverters
• Material handling gates - Instant Response Times
Air’s compressibility enables:
• Emergency stops
• Quick tool changes
• Impact absorption
Motion Control Technology Comparison
| Technology | Pneumatic Implementation | Hydraulic Implementation |
|---|---|---|
| Speed Control | Meter-out flow regulators | Proportional directional valves |
| Position Feedback | Magnetic reed switches | LVDT/Liner encoders |
| Stopping Accuracy | ±0.05″ (mechanical stops) | ±0.001″ (servo control) |
| Force Monitoring | Pressure switches (crude) | Strain gauge load cells |
Application-Specific Recommendations
Choose Pneumatics When:
✔ Cycle time < 1 second required
✔ Binary position control suffices
✔ Operating environment is clean/dry
✔ Energy efficiency isn’t critical
Choose Hydraulics When:
✔ Precise speed/position control needed
✔ Variable force application required
✔ Heavy loads must move smoothly
✔ Harsh conditions present (heat/dirt)
For applications demanding both speed and precision, consider electro-pneumatic servo systems or hybrid electrohydraulic solutions, though these increase complexity and cost significantly.
What Are the Maintenance and Failure Mode Differences?
Maintenance requirements and failure modes differ substantially between pneumatic and hydraulic cylinders, impacting total cost of ownership, system reliability, and long-term performance. These differences stem from their distinct operating principles, fluid properties, and typical operating environments. Understanding these variations helps maintenance teams develop effective preventive strategies and helps designers select the optimal technology for specific applications.
Common Pneumatic Cylinder Issues
1. Seal Wear from Poor Lubrication or Contaminated Air
- Root Causes:
- Inadequate lubrication in non-self-lubricating systems
- Particulate contamination (>5 microns) in compressed air
- Dry air leading to increased friction (relative humidity below 30%)
- Failure Symptoms:
- Gradual loss of actuation force
- Increased air consumption
- External air leakage around rod glands
- Preventive Measures:
- Install proper filtration (40µm pre-filter + 5µm post-filter)
- Maintain air treatment units (dryers, lubricators)
- Implement predictive maintenance with air flow monitoring
2. Bushing Wear Causing Piston Rod Side Loading
- Mechanism of Failure:
- Misalignment exceeding 0.5° creates uneven loading
- Cyclic lateral forces degrade bushing materials
- Results in accelerated rod seal wear
- Detection Methods:
- Vibration analysis shows increased lateral movement
- Visible rod scuffing patterns
- Abnormal audible noise during operation
- Corrective Actions:
- Use alignment tools during installation
- Consider rod-end spherical bearings
- Upgrade to heavy-duty guide bushings
3. Corrosion from Water in Air Lines
- Contributing Factors:
- Inadequate air drying (pressure dew point too high)
- Frequent temperature cycling causing condensation
- Use of non-corrosion resistant materials (carbon steel rods)
- Problem Areas:
- Rod surfaces (pitting leads to seal damage)
- Internal cylinder walls (rust particles contaminate system)
- Port threads (compromises sealing surfaces)
- Solutions:
- Specify stainless steel rods for wet environments
- Install automatic drain traps
- Implement corrosion inhibitors in lubricators
4. Speed Inconsistency Due to Varying Loads or Supply Pressure
- Operational Impacts:
- ±15% speed variation common with load changes
- Pressure drops in long air lines (>50ft)
- Compressor cycling causing system pressure fluctuations
- Improvement Strategies:
- Install quick exhaust valves for consistent retraction
- Use air piloted check valves for load holding
- Implement pressure regulators at point-of-use
Typical Hydraulic Cylinder Failures
1. Rod Scoring from Contamination or Misalignment
- Critical Contamination Levels:
- NAS Class 8 or better required for servo systems
- Hard particles >5µm cause microscopic scoring
- Progression of Damage:
- Initial polishing wear (Stage 1)
- Adhesive material transfer (Stage 2)
- Macroscopic grooves (Stage 3)
- Protection Methods:
- Multi-stage filtration (beta ratio >200)
- Rod wipers with secondary scrapers
- Chromium plating with micro-crack pattern
2. Internal Leakage Across Piston Seals
- Performance Impacts:
- Cylinder drift under load (>0.5″/min unacceptable)
- Reduced system efficiency
- Heat generation in fluid
- Testing Procedures:
- Pressure decay testing (monitor over 5 minutes)
- Flow meter measurements across ports
- Thermal imaging for localized heating
- Seal Selection Guide:
| Seal Type | Pressure Range | Temperature Range | Life Expectancy |
|---|---|---|---|
| U-Cup | ≤3000 PSI | -20°C to +100°C | 50,000 cycles |
| Step-Seal | ≤6000 PSI | -40°C to +150°C | 200,000 cycles |
| PolyPak | ≤5000 PSI | -50°C to +200°C | 500,000 cycles |
3. Cylinder Barrel Wear from Contamination
- Wear Patterns:
- Abrasive wear along thrust surfaces
- Adhesive wear near stroke ends
- Erosion at port connections
- Remediation Techniques:
- Chrome plating repair (0.005″-0.010″ thickness)
- Honing to restore surface finish (8-16 µin RA)
- Barrel replacement when wear exceeds 0.002″/in of bore
4. Rod Bending from Side Loads Exceeding Design Limits
- Design Considerations:
- Euler buckling calculations critical for long strokes
- Max allowable side load typically 5% of thrust capacity
- Stroke-to-bore ratio limitations
- Protection Methods:
- Rod guides for strokes >10x rod diameter
- Load cells for force monitoring
- Pressure relief valves to prevent overloading
Maintenance Requirements Comparison
Pneumatic Maintenance Tasks
Daily/Weekly:
- Drain water from reservoirs (auto-drains preferred)
- Check lubricator oil levels (if used)
- Visual inspection for air leaks (ultrasonic detectors)
Monthly:
- Replace compressor intake filters
- Test pressure dew point of air supply
- Inspect cylinder mounting hardware torque
Annually:
- Internal inspection of critical cylinders
- Replacement of all elastomeric seals
- Calibration of pressure regulators
Hydraulic Maintenance Tasks
Daily/Weekly:
- Monitor oil cleanliness (particle counting)
- Check for external leaks (≥5 drops/min requires action)
- Inspect reservoir breathers and fill screens
Monthly:
- Change hydraulic filters (differential pressure monitoring)
- Test fluid viscosity and additive package
- Inspect hose and fitting conditions
Annually:
- Full fluid analysis (water content, TAN, wear metals)
- Cylinder repacking with new seal kits
- Flushing of system if contamination exceeds ISO 4406 targets
Failure Prevention Best Practices
For Pneumatic Systems:
- Implement ISO 8573-1 air quality standards
- Use coalescing filters with 0.01 µm rating for critical applications
- Install moisture indicators at point-of-use
- Specify cylinders with integrated cushioning for >12 in/sec speeds
For Hydraulic Systems:
- Maintain ISO 4406 particle counts appropriate to component sensitivity
- Implement offline filtration systems
- Use desiccant breathers on reservoirs
- Monitor fluid temperature (keep below 60°C)
How Do Energy Efficiency and Operating Costs Compare?
Power Consumption Analysis
Energy loss mechanisms differ significantly:
- Pneumatic systems lose energy through:
- Air compressor inefficiency (60-70% loss)
- Pressure drop across plumbing
- Air exhaust losses
- Hydraulic systems lose energy through:
- Pump throttling losses
- Valve pressure drops
- Heat generation from internal leakage
What Are the Environmental and Installation Considerations?
Temperature Operating Ranges
| Medium | Minimum Temp | Maximum Temp |
|---|---|---|
| Pneumatic | -40°F (with dry air) | 250°F (special seals) |
| Hydraulic | -20°F (synthetic oil) | 180°F (petroleum oil) |
Noise Level Comparisons
- Pneumatic exhaust produces 85-100 dB noise during operation
- Hydraulic systems typically operate at 70-85 dB
- Both require mufflers/enclosures in noise-sensitive environments
Space Requirements
- Pneumatic systems require:
- Compressor room space
- Larger diameter piping (vs. hydraulic)
- Hydraulic systems need:
- Reservoir tank space
- Heat exchanger area
- Clean service access
Conclusion: When to Choose Pneumatic vs. Hydraulic Cylinders
The operational differences between pneumatic and hydraulic cylinders lead to clear application guidelines:
Choose Pneumatic When:
- Moderate forces (under 5,000 lbf) are sufficient
- Fast cycling speeds are required
- Simple on/off motion control is adequate
- Clean operation is mandatory
- Lower initial cost is critical
- Energy efficiency is less important
Select Hydraulic When:
- High forces (over 5,000 lbf) are necessary
- Precise motion or force control is required
- Intermediate positioning is needed
- Compact actuator size is valuable
- Operating environment contains dust/moisture
- High stiffness is essential
Modern motion systems increasingly combine both technologies, using pneumatics for rapid positioning and hydraulics for final pressing or clamping operations.
