I’ve spent years walking hazardous sites—from solvent handling lines to grain transfer silos—where a single hot particle at a pneumatic exhaust can become the ignition source nobody anticipated. I’ve seen maintenance teams swap a quiet bronze silencer onto a valve stack, unaware that their Zone 1 classification demands more than noise control. In my experience, the right muffler isn’t just about decibels; it’s about flame quenching, static dissipation, materials that won’t shed sparks, and installation practices that keep backpressure—and risk—under control.
Yes—flameproof and spark‑arresting pneumatic mufflers are available for hazardous areas, typically marketed as “spark arrestor silencers” or “flame arrester mufflers.” Look for units with ATEX and/or IECEx compliance, stainless sintered or mesh elements, and proven flame‑quenching test data. Correct sizing, grounding, and maintenance are critical, because clogged media raise backpressure and can undermine both safety and performance.
I’ll break down the exact standards to specify (ATEX, IECEx, zone classification, equipment category), the materials and media types that actually reduce ignition risk, how to handle static discharge around exhausts, and practical installation/grounding methods that I use when auditing plants. I’ll also include selection tables and application notes so you can convert procurement requirements into safe, reliable hardware.
What standards should I look for (ATEX, IECEx) in my procurement specs?
Hazardous area certification basics
When I write specs for pneumatic exhaust mufflers in explosive atmospheres, I align with regional conformity frameworks:
- ATEX (EU): Directive 2014/34/EU for equipment; use zone classification from Directive 1999/92/EC.
- IECEx (international): Scheme for conformity per IEC standards (e.g., IEC 60079 series).
For exhaust components, I call out both the zone and the equipment category:
- Zone classification: Zone 0/1/2 for gases (Group IIA/IIB/IIC), Zone 20/21/22 for dusts.
- Equipment category/Protection level: Category 2 (Gb/Db) for Zone 1/21, Category 3 (Gc/Dc) for Zone 2/22.
Spec language that avoids ambiguity
I avoid vague “explosion‑proof” claims and require:
- Device marking: ATEX Ex marking with group, category, and temperature class (e.g., Ex II 2G Ex h IIC T4 Gb).
- Flame‑quenching performance: Test per relevant flame arrestor standards (deflagration tests; often documented by notified bodies), or manufacturer data demonstrating hot‑particle retention for compressed air exhaust.
- Surface temperature limits: Max T‑class that stays below ignition temp of local gases/vapors/dust.
- Electrostatic properties: Conductive path to earth; surface resistivity requirements for antistatic plastics if used.
- Mechanical ratings: Pressure/temperature envelope, Cv/flow vs. pressure drop curves, clogging indication if available.
- Maintenance instructions: Cleaning intervals, media replacement procedures, contamination limits (oil, adhesive dust, fibers).
If the exhaust is from flammable gas process venting (not just compressed air), I specify certified deflagration/detonation flame arrestors instead of general pneumatic silencers.
Which materials reduce ignition risk at my exhaust ports in flammable environments?
Media and body choices that matter
When I’m mitigating ignition risk, I prioritize materials that (1) conduct away static, (2) resist high temperature and corrosion, and (3) physically quench flames or trap incandescent particles.
- 316L stainless steel sintered media: Excellent flame quenching and high-temperature stability; corrosion resistant in chemical and marine atmospheres.
- Woven stainless mesh or crimped metal ribbon elements: Proven in flame arrestors; high thermal mass and tortuous path dissipate heat and stop flame fronts.
- Nickel alloys (e.g., Monel, Inconel): For aggressive corrosion or elevated temperature environments; preferred in sour gas or chloride stress scenarios.

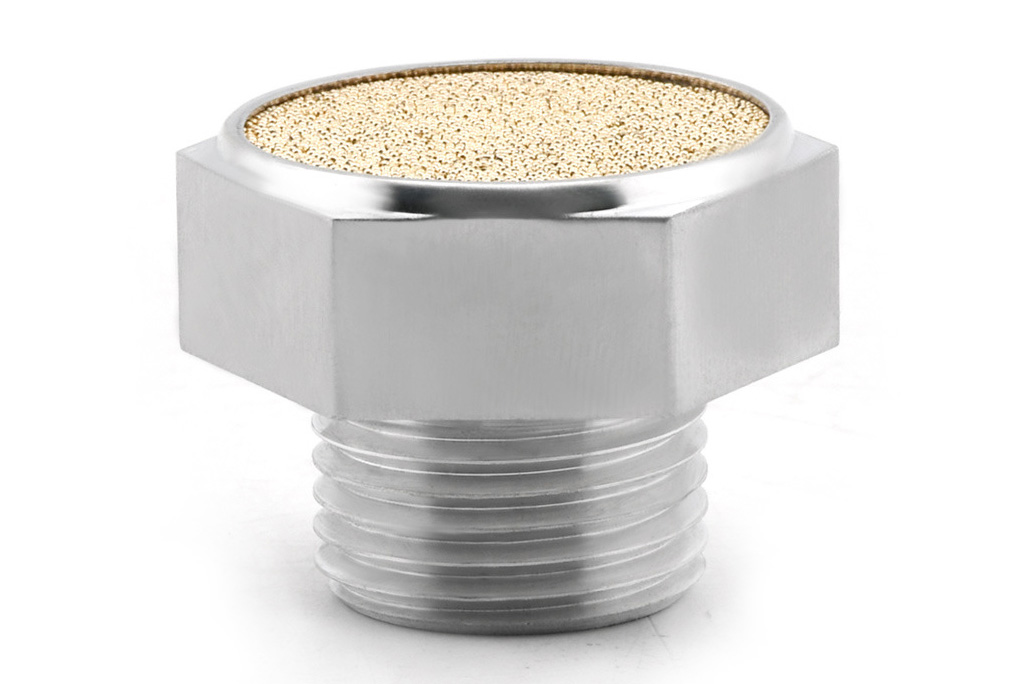

- Sintered bronze: Common in general pneumatics; conductive and decent quenching. In harsher or Zone 1 environments, I move to 316L for corrosion/hygiene.
- Antistatic polymers (carbon‑filled PP or PTFE): Only when required for chemical compatibility; must be conductive and bonded to earth. I avoid non‑conductive plastics due to static risk.

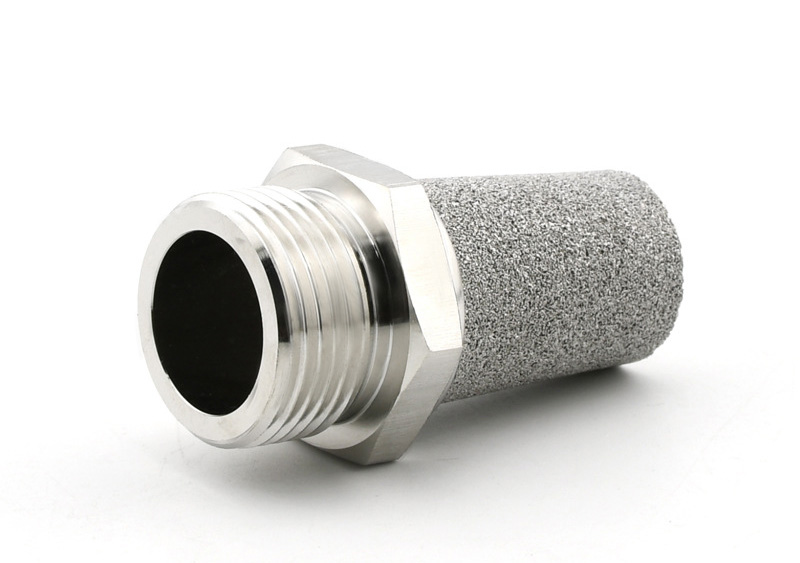

Why stainless sintered elements are my default
The fine pore structure acts as a heat sink; as hot gas or particles pass, heat is absorbed and the temperature drops below the ignition threshold. The metal is inherently conductive, which helps bleed static charge. Porosity must be balanced to maintain flow while keeping particle arresting efficiency high; I size based on required Cv and allowable backpressure.
Material comparison
| Material | Spark / Flame Risk Mitigation | Corrosion Resistance | Temp Capability | Notes |
|---|---|---|---|---|
| 316L Stainless (sintered/mesh) | Excellent flame quench; static conductive | Excellent | High | Preferred for ATEX/IECEx; hygienic and durable |
| Nickel Alloys (Monel, Inconel) | Excellent | Exceptional (chemicals, high temp) | Very high | Use in aggressive media and high temp duty |
| Sintered Bronze | Good; conductive | Moderate | Moderate | Common, but may corrode in chemicals; check ATEX marking |
| Antistatic Polymer (carbon-loaded) | Good for static; poor flame quench | Varies | Moderate | Only when certified; ensure bonding/grounding |
How do I manage static discharge and sparks around my compressed air exhausts?
Static management checklist I use in audits
- Conductive path: Ensure the muffler body and media are metallic or antistatic, and bonded to the equipment ground. I target <10⁶ Ω surface resistivity for polymer components.
- Grounding continuity: Verify continuity from muffler threads to manifold/valve body and to plant earth. Non-metallic thread sealants and PTFE tape can isolate; I use conductive paste or ensure a metal-to-metal path (with compatible sealants).
- Air quality: Dry, clean air reduces particle ejection. Install FRLs with coalescing filtration to remove oil mist; oil-laden exhaust can carry incandescent droplets in rare cases.
- Exhaust temperature: Rapid depressurization from high-pressure accumulators can heat elements; I check temperature rise and select media with adequate thermal mass.
- Secondary diffusers: For high-risk tasks (blow-off nozzles, high-cycle valves), I add downstream diffusers or a two‑stage arrestor (primary sintered, secondary mesh).
- Humidity control: Extremely dry environments drive static buildup; maintaining controlled humidity or using antistatic measures on nearby plastic guards helps.
Flow, Cv, and backpressure
I size mufflers so the pressure drop stays within actuator/valve backpressure limits. Excess backpressure can slow cylinder exhaust, increase heat at the media, and in some cases raise noise as the element clogs. As a rule of thumb, I keep ΔP <10–15% of line pressure during exhaust peaks and select elements with adequate Cv and large face area. For high flow pulsing (air motors), I prefer straight‑through spark arresting mufflers with staged elements.
What installation and grounding practices should I follow to ensure safety in my facility?
Installation practices that reduce ignition risk
- Fit arrestors on every exhaust: Valves, cylinder ports, air motors, solenoid vents, and blow‑off lines. Cumulative risk drops when no “bare exhaust” remains.
- Orientation and clearance: Mount mufflers where hot particles cannot impinge on dust layers or solvent vapors; avoid exhaust pointing at product or cable trays.
- Sealing and compatibility: Use thread sealants compatible with bonding (conductive paste where needed) and with process chemicals; avoid isolating coatings.
- Pressure/temperature verification: Confirm the muffler rating exceeds your system’s max pressure and temperature. I ask suppliers for flame‑quench or hot‑particle test data.
- Serviceability: Choose designs with cleanable/replacable elements; install where inspection is easy. Add differential pressure indicators or schedule inspection based on duty cycle.
Grounding and bonding details
- Bonding straps: If the valve manifold is anodized or painted, use serrated washers or bonding straps to ensure metal contact to ground.
- Continuity tests: Measure resistance from muffler to earth; document in hazardous area dossiers. Correct any isolation due to Teflon tape or plastic adapters.
- Antistatic plastics: If using carbon‑filled polymer mufflers, run a dedicated bonding lead or ensure metallic insert continuity; verify surface resistivity from supplier data.
- Avoid isolating couplings: Plastic quick connectors downstream of a metal muffler can break the path; keep the exhaust chain conductive to earth.
Noise vs. safety trade‑offs
| Exhaust Solution | Typical Noise Reduction | Safety Feature | Trade‑offs |
|---|---|---|---|
| Sintered SS spark-arresting muffler | 20–30 dB | Flame/particle quench, conductive | May clog; monitor ΔP |
| Mesh/ribbon flame arrester + diffuser | 15–25 dB | High flame-stopping capability | Larger footprint; periodic cleaning |
| Straight‑through low‑backpressure arrestor | 10–15 dB | Particle trap, less ΔP | Slightly noisier; good for high Cv |
| Standard bronze silencer (non‑certified) | 15–25 dB | Basic quench only | Not for Zone 1/2 without certification |
Maintenance to prevent failure modes
The most common failure mode I see is hot particle ejection during rapid depressurization or when a clogged element forces jetting through localized pores. I mitigate this by:
- Routine cleaning/replacement intervals tied to hours of operation and particulate load.
- Installing a secondary mesh guard downstream for high‑risk operations.
- Monitoring backpressure and noise changes; a rise usually indicates fouling.
Conclusion
Flameproof and anti‑spark pneumatic mufflers are not only available—they’re a proven control measure when matched to the hazard zone, correctly grounded, and maintained. I specify ATEX or IECEx markings with clear zone/category, demand flame‑quenching evidence, and select 316L stainless sintered or mesh/ribbon elements for the best combination of thermal quench, conductivity, and corrosion resistance. Static control comes from ensuring a continuous conductive path to earth, careful sealant choices, and, when necessary, antistatic polymers with documented resistivity. Finally, I install arrestors on every exhaust, size them for low backpressure, and set maintenance intervals to prevent clog‑induced risks. With those practices, your compressed air exhausts stop being ignition sources and start being a quiet, safe part of the system.
